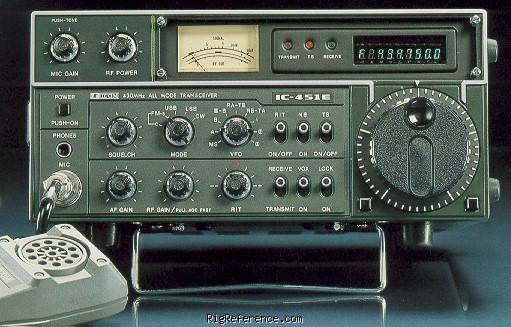

ICOM IC-451E

Desktop UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The ICOM IC-451E is a Desktop UHF Transceiver. It covers 430-440 MHz for both receive and transmit. The maximum RF output is 10 W. It requires 13.8V DC or mains power. Dimensions are 111 × 241 × 264 mm. The IC-451E draws a maximum of 800 mA in receive mode and 3.5 A in transmit mode.

General characteristics

HAM bands: 70cm
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 430-440 MHz
Modulations: FM CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 430-440 MHz
Modulations: FM CW SSB
RF-output: Max 10 W

Connections

Antenna: N-type
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC or mains
Current drain RX: Max 800 mA
TX: Max 3.5 A

Physical

Dimensions (w×h×d): 241 × 111 × 264 mm (9.49 × 4.37 × 10.39 in)
Weight: 7.20 kg (15.9 lbs)
Form factor: Base Station
Manufactured: Between 1980 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3093
MPN: ICOM-IC-000451E

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-451E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the ICOM IC-451E is around:

USD 215 ~ USD 400

This estimate is based on similar equipment and may not reflect the exact value of this model.
