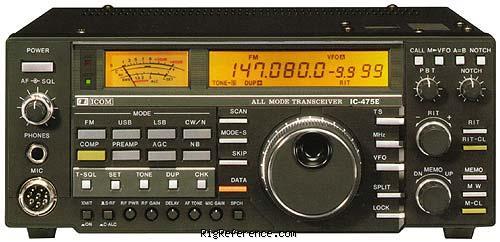

According to ICOM, the ICOM IC-475E was the most sophisticated all-mode 70cm transceiver available on the market when it was introduced. It featured the new CI-V system, a system to computer control the rig and it pioneered a Direct Digital Synthesizer (DDS) system which eliminated the need for a PLL circuit.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ± 5 p.p.m.
- Tuning steps
- ?
- Memories
- 99 channels in 1 bank(s)
Receiver
- RX-range
- 430-440 MHz
- Modulations
- FM CW USB LSB
- Sensitivity
- FM: 0.18 µV (12 dB SINAD)
SSB/CW: 0.1 µV (10 dB S/N) - Selectivity
- FM: 15 kHz (-6 dB), 30 kHz (-60 dB)
SSB/CW: 2.3 kHz (-6 dB), 4 kHz (-60 dB) - Filters
- Optional 500 Hz CW filter
- Receiver system
- Quadruple (SSB/CW) / Triple (FM) conversion superheterodyne
- IF-frequencies
- 1st: 70.45 / 7.45 MHz
2nd: 9.01 MHz
3rd: 455 kHz
4th: 9.01 MHz - Image rejection
- 70 dB
- Audio output
- 2 W at 10% distortion with an 8 ohm load
Transmitter
- TX-range
- 430-440 MHz
- Modulations
- FM CW USB LSB
- RF-output
- 2.5-25 W
Connections
- Antenna
- N-type
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC or mains
- Current drain RX
- 1.1-1.3 A
- TX
- 7.5 A max
Physical
- Dimensions (w×h×d)
- 241 × 95 × 239 mm (9.49 × 3.74 × 9.41 in)
- Weight
- 6.30 kg (13.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1987 and 199x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CI-V
- Accessories
- High stability crystal unit
Satellite communication interface unit
CI-V level converter
Tone squelch unit
Voice synthesizer unit
CW narrow filter (500 Hz)
Mobile mounting bracket - RigReference ID
- 3098
- MPN
- ICOM-IC-000475E
