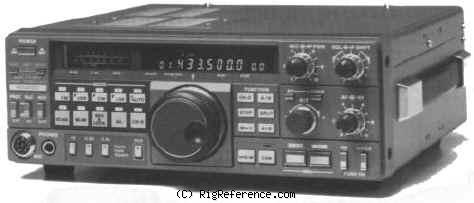

The Kenwood TS-811E is a 430-440 MHz transceiver. RF output is 2-25 W. Power requirements are 12-16V DC or mains. Features include DCS. The radio weighs 7.1 kg. Current drain is Max 1.4 A in receive and Max 8 A in transmit. Dimensions are 96 × 270 × 260 mm.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 430-440 MHz
- Modulations
- FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 430-440 MHz
- Modulations
- FM CW SSB
- RF-output
- 2-25 W
Connections
- Antenna
- N-type
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 12-16V DC or mains
- Current drain RX
- Max 1.4 A
- TX
- Max 8 A
Physical
- Dimensions (w×h×d)
- 270 × 96 × 260 mm (10.63 × 3.78 × 10.24 in)
- Weight
- 7.10 kg (15.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1984 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DCS
- Accessories
- -
- RigReference ID
- 3508
- MPN
- KENWOOD-TS-000811E
Manuals, diagrams and brochures
- Kenwood TS-711 & TS-811 Service Manual PDF - Unknown size, submitted by RigReference
- Kenwood TS-811A User Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-811E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TS-811E in Good condition is around:
- USD 301
These estimates are based on the following prices:
