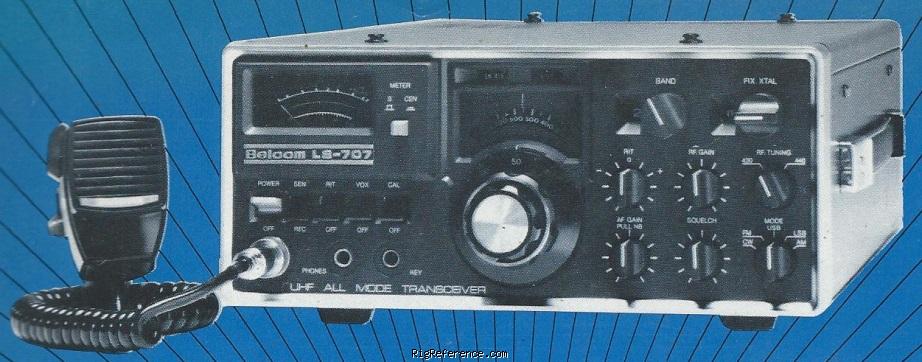

Belcom LS-707

430 MHz All Mode Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Belcom LS-707 is a 430-440 MHz transceiver. It has an RF output of 10 W (AM: 4W) and 1 memory bank with 10 channels. It features 10 crystal controlled channels and an optional R-707PS Power supply / speaker unit. The LS-707 utilizes a Double/triple conversion receiver system. It requires 12V DC power.

General characteristics

HAM bands: 70cm
Frequency stability: ?
Tuning steps: ?
Memories: 10 channels in 1 bank(s)

Receiver

RX-range: 430-440 MHz
Modulations: AM FM CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: Double/triple conversion
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 430-440 MHz
Modulations: AM FM CW SSB
RF-output: 10 W (AM: 4W)

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 12V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Base Station
Manufactured: Between 1976 and 1979 in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: 10 crystal controlled channels
optional R-707PS Power supply / speaker unit
Accessories: -
RigReference ID: 6103
MPN: BELCOM-LS-000707
