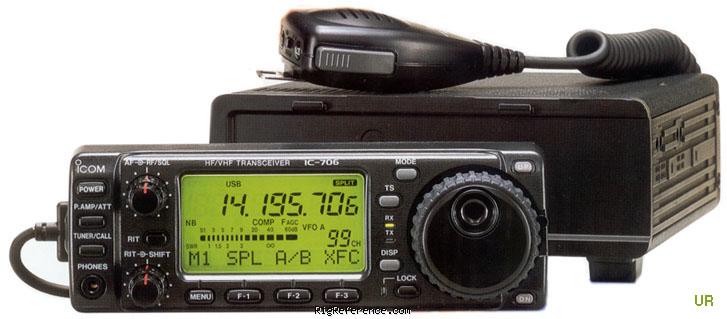

The ICOM IC-706 is a Mobile HF/VHF Transceiver. It covers 0.03-200 MHz all-mode including WFM for reception and transmits on 10-160 m + WARC / 50-54 / 144-146 MHz (Europe) or 10-160 m + WARC / 50-54 / 144-148 MHz (USA). The RF output is 100/100/10 W. It has 1 memory bank with 102 channels and requires 13.8V DC power. Dimensions are 58 × 167 × 200 mm and it weighs 2.5 kg.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 2m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 102 channels in 1 bank(s)
Receiver
- RX-range
- 0.03-200 MHz all-mode incl WFM
- Modulations
- AM FM CW SSB RTTY
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 50-54 / 144-146 MHz (Europe)
10-160 m + WARC / 50-54 / 144-148 MHz (USA) - Modulations
- AM FM CW SSB RTTY
- RF-output
- 100/100/10 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 167 × 58 × 200 mm (6.57 × 2.28 × 7.87 in)
- Weight
- 2.50 kg (5.5 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1995 and 199x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3129
- MPN
- ICOM-IC-000706
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
Reviews
| Rating | Title | Submitted |
|---|---|---|
| Great Mobile | 4 years ago by kv4io | |
| Great radio for a Ham beginner | 12 years ago by Berenland |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-706. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-706 in Good condition is around:
- EUR 250 ~ EUR 506
- USD 376 ~ USD 650
These estimates are based on the following prices:
