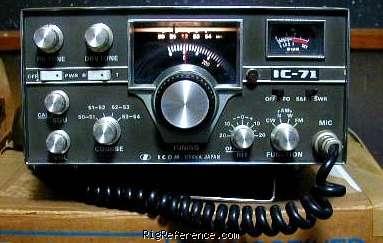

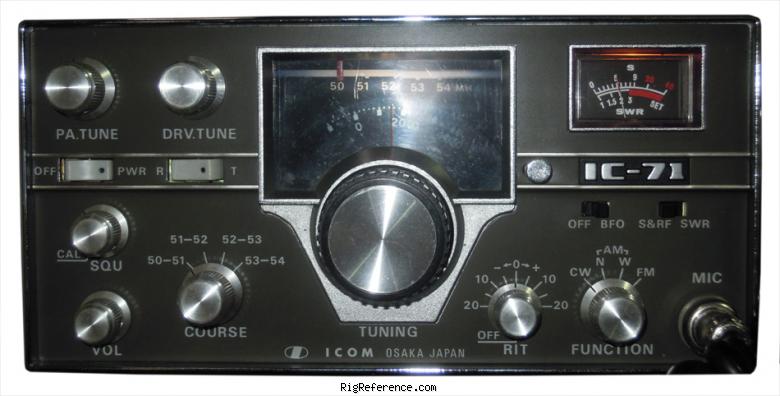

The ICOM IC-71 is a multi mode 6 meter transceiver.

General characteristics

HAM bands
?
Frequency stability
± 1.5 kHz after first hour
Tuning steps
Four bands divided into 1 MHz segments. VFO barrel tuner sealed unit. Tuning range before retune is 100 kHz

Receiver

RX-range
50-54 MHz
Modulations
AM   FM   CW
Sensitivity
SSB: 0.25 µV
FM: 1 µV
Selectivity
CW: ≤ 4.0 kHz at -50dB
AM: ≤ 12 kHz at -40dB
FM: ≤ 32 kHz at -50dB
Filters
None
Receiver system
Single conversion superheterodyne
IF-frequencies
10.7 MHz
Image rejection
≥ 60 dB
Audio output
2 W

Transmitter

TX-range
50-54 MHz
Modulations
AM   FM   CW
RF-Output
10 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
3 A max

Physical

Manufactured
Between 1968 and 1971 in Japan (not available for export)
Dimensions (w×h×d)
230 × 111 × 260 mm (9.06 × 4.37 × 10.24 in) (excl. feet and power supply)
Weight
5.30 kg (11.7 lbs)
Form factor
Base Station

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
BFO
Optional AC supply
Built in SWR meter with calibration pot on back of radio
Accessories
?
MPN
ICOM-IC-000071

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Excellent radio for its age

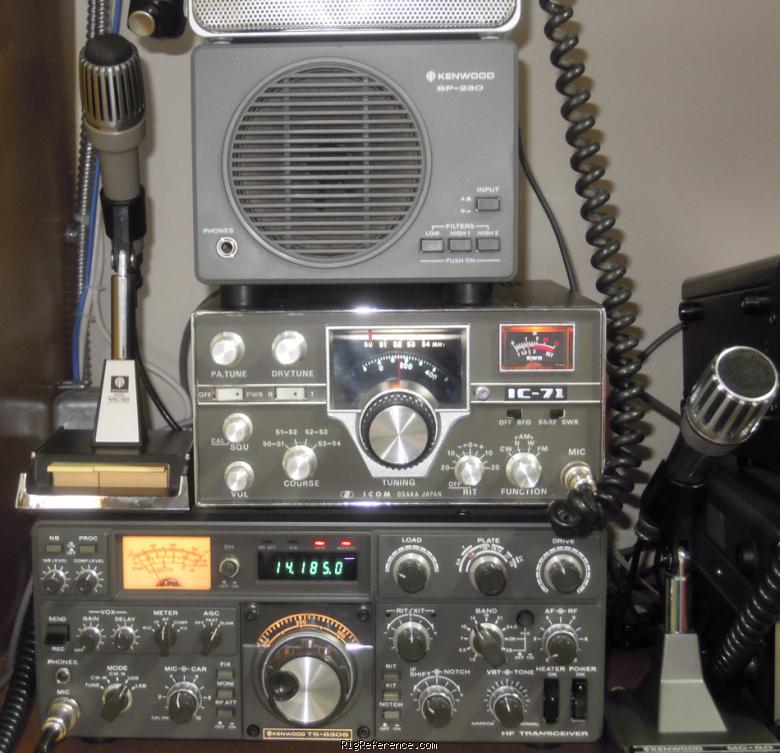

ICOM IC-71, Desktop VHF Transceiver

Got this in a trade in mint conditon, this was never sold to North America so it is a rare find along with the matching power supply.I had one of these in 1979 when AM and FM where still popular. Good selectivity and you can pretty much tell where you are on frequency.
Have it listening for a beacon in BC.
For the time that it came out it does what is supposed to do and on FM the sound quality is very good both on TX and RX.
Plug and play, adjust the Drive tune and peak the PA for about 12 watts out.
Very nice conversation piece.

Written by va7vo on Feb 15, 2012

Overall

Performance
Build quality
Features
User friendliness
Value for money
Aquired
Mint condition in 2012
CAD 150.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-71. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-71 is around:

  • CAD 90.00

These estimates are based on the following prices: (see all 1 prices)

Year Historic price Condition Submitted by
2012 CAD 150.00 Used / Mint va7vo
