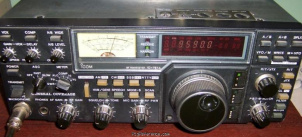

ICOM IC-751A Desktop Shortwave Transceiver

 (5.0/5)  Add a story   View all stories (1)   Add to my shack



This A-model includes some improvements from the previous version (ICOM IC-751), but it still have the battery-backed BIOS-RAM. Special procedure to replace the battery, or the radio will die!


SSB (A3J) 200 watts PEP input
CW 200 watts input
FM 200 watts input
AM 40 watts output

Frequency range

RX-range
10-160 m + WARC
TX-range
10-160 m + WARC
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM   CW   USB   LSB   RTTY
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
AM   FM   CW   USB   LSB   RTTY
RF-Output
SSB/CW/FM: 10-100W (200W input), AM: 10-40W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
-
TX
Max 20 A

Physical

Dimensions (w×h×d)
-
Weight
-
Form factor
Base Station
Manufactured
Between 1985 and 19xx in Japan
MPN

Other features

Memories
32 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

ICOM IC-751A Service-Manual-adjustments.pdf submitted by RigReference
ICOM IC-751A Schematic Diagram-1.pdf submitted by RigReference
ICOM IC-751A Schematic Diagram-2.pdf submitted by RigReference
ICOM IC-751A Instruction Manual.pdf submitted by RigReference
ICOM IC-751A Service-Manual-options-installations.pdf submitted by RigReference
ICOM IC-751A-pll-adjustment.pdf submitted by RigReference
ICOM IC-751A-dcdc-modification.pdf submitted by RigReference

Upload relevant documents

Show other ICOM documents.

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the ICOM IC-751A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the ICOM IC-751A might be around:

  • USD 149.00
Price Condition Year User
USD 375.00 Good / Used 2009 mvaughanusm81

To submit a price, please login or register an account.

Stories & reviews

Still a workhorse of the 2k's

ICOM IC-751A, Desktop Shortwave Transceiver

When it came to which rig I would keep: Drake 7 or Icon 751a, I chose the latter. The 751a was, at one time, Icoms Flagship of transceivers. It was smoother to operate and the controls were right at your fingertips. To this date, I have found the 751a has MORE features on it that are found on late model rigs. (Pre-2000). Comparing to other brands, I came out on top. If you have one of these rigs...KEEP IT! Mike, W5MSV

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2009
USD 375.00
