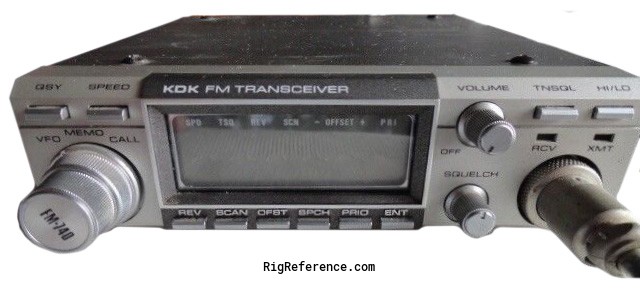

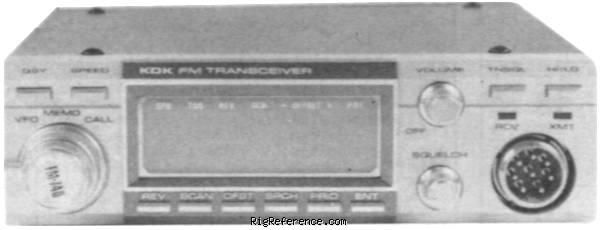

The KDK FM-740 is a Mobile UHF Transceiver. It covers 430-440 MHz for both reception and transmission. The radio features 1 memory bank with 16 channels. RF output power is selectable between High: 10 W and Low: 1 W. Power requirements are 13.8V DC.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 16 channels in 1 bank(s)
Receiver
- RX-range
- 430-440 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 430-440 MHz
- Modulations
- FM
- RF-output
- High: 10 W, Low: 1 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 198x and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3325
- MPN
- KDK-FM-000740
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used KDK FM-740. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the KDK FM-740 in Good condition is around:
- USD 68
These estimates are based on the following prices:
