General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?

Receiver

RX-range
430-440 MHz
Modulations
FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
430-440 MHz
Modulations
FM
RF-Output
High: 35 W, Medium: 10 W, Low: 5 W

Connections

Antenna
N-type
Impedance
50 Ω
Other
-

Electrical

Power requirements
11-16V DC
Current drain RX
Max 700 mA
TX
Max 9.5 A

Physical

Manufactured
Between 19xx and 19xx
Dimensions (w×h×d)
140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
Weight
1.20 kg (2.6 lbs)
Form factor
Mobile

Other features

Memories
20 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
KENWOOD-TM-000431E

Manuals, diagrams and brochures

Kenwood TM-231 / TM-331 / TM-431 / TM-531 Manual submitted by RigReference

Upload relevant documents

Reviews & stories

Great single band UHF work horse!

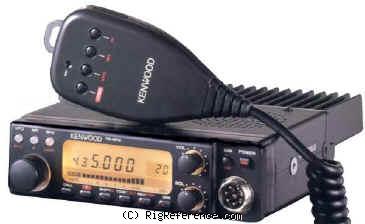

Kenwood TM-431E, Mobile UHF Transceiver

I bought this rig around early 1994, and the guys from around Buffalo, NY hardly used it, and sold it to me for about $400.00. Nice rig! As good as its 2M and 222MHz cousins. Easy to operate, great audio reports, great RX ears on it, and never heard IMD on it. Only MOD's done to it were to replace the Li Battery and that early '90's Kenwood teardrop style mic with the newer MC-57 DTMF mic, which is a better upgrade since that mic is backlit. I hope to keep this rig for years to come. Yeah, I may have paid more than I should for a used single band rig, even in 1994, but I don't regret it as it continues to still serve me well when I need it. The next MOD to it would be to replace the display wheat bulbs with 3mm white LED's, like I have with other Kenwood rigs like the TM-741A and TM-241A.

Written by rreh917 on May 30, 2019

Overall

Performance
Build quality
Features
User friendliness
Value for money
Aquired
Good condition in 1993
USD 400.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-431E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TM-431E is around:

  • USD 10.00

These estimates are based on the following prices: (see all 1 prices)

Year Historic price Condition Submitted by
1993 USD 400.00 Used / Good rreh917
