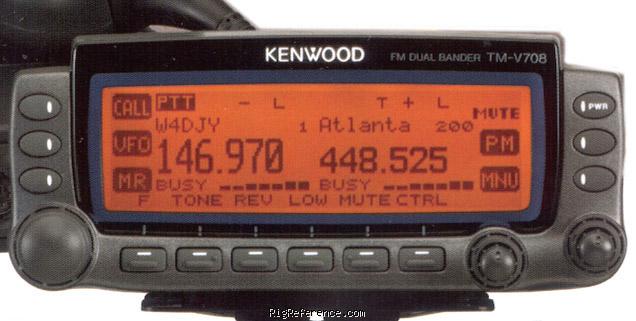

The Kenwood TM-V708A is a VHF/UHF transceiver. It covers 136-175 / 300-524 / 800-1300 MHz (Cellular blocked) for reception and 144-148 / 438-450 MHz for transmission. The radio has a maximum RF output of 50/35 W on high, 10/10 W on medium, and 5/5 W on low power. It features Alpha tags, CTCSS/DTSS, and Twin RX capability. The TM-V708A includes 1 memory bank with 200 channels and requires 13.8V DC for operation. The current drain is a maximum of 1 A while receiving and 4-11.5 A while transmitting. The panel dimensions are 140 × 60 × 34 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 200 channels in 1 bank(s)
Receiver
- RX-range
- 136-175 / 300-524 / 800-1300 MHz (Cellular blocked)
- Modulations
- AM FM
- Sensitivity
- 0.16 µV (12 dB SINAD)
- Selectivity
- 12 kHz (-6 dB), 28 kHz (-40 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 / 438-450 MHz
- Modulations
- FM
- RF-output
- High: 50/35 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- N-type
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 1 A
- TX
- 4-11.5 A
Physical
- Dimensions (w×h×d)
- ?
- Weight
- 1.40 kg (3.1 lbs)
- Form factor
- Unknown
- Manufactured
- Between 2002 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Alpha tags. CTCSS/DTSS. Twin RX
- Accessories
- -
- RigReference ID
- 3433
- MPN
- KENWOOD-TM-V000708A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-V708A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Kenwood TM-V708A is around:
- USD 171 ~ USD 318
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
