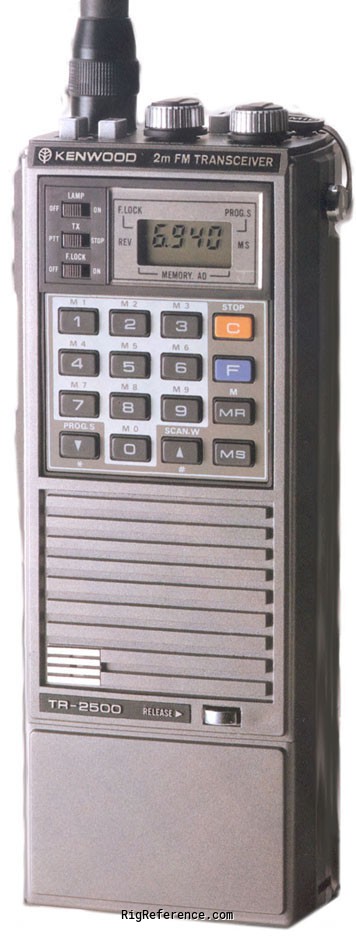

Kenwood TR-2500

Handheld VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (2) Compare

The Kenwood TR-2500 is a well built 2 meter HT. RF output is 2.5 watts or 300 mW. Operation is from 144 to 147.995 MHz. Frequency selection is available from the keypad. Up-Down manual scan is available in 5 kHz steps. Ten memories are featured. There is a built-in tuneable sub-tone encoder. It uses a variable resistor inside the unit to select the CTCSS tone. The optional TU-1 tone unit encoder permits selection by DIP switches, and this device snaps into position between the radio and the battery.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: 5 kHz
Memories: 10 channels in 1 bank(s)

Receiver

RX-range: 144-146 MHz (Europe)
143.9-149 MHz (USA)
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz (Europe)
143.9-149 MHz (USA)
Modulations: FM
RF-output: High: 2.5 W, Low: 0.3 W

Connections

Antenna: BNC
Impedance: 50Ω
Other: -

Electrical

Power requirements: 8.4V DC +/- 25%
Current drain RX: ?
TX: 400-800 mA

Physical

Dimensions (w×h×d): 66 × 168 × 40 mm (2.60 × 6.61 × 1.57 in)
Weight: 540 gr (1.2 lbs) with batteries
Form factor: Handheld
Manufactured: Between 1981 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3447
MPN: KENWOOD-TR-002500

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TR-2500. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Kenwood TR-2500 in Good condition is around:

USD 52 ~ USD 62

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2020	USD 9.95	Used / Poor	eBay
2020	USD 20.77	Used / Fair	eBay
