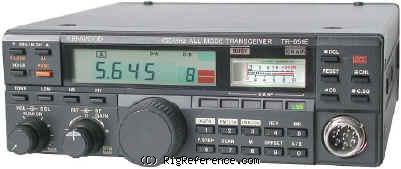

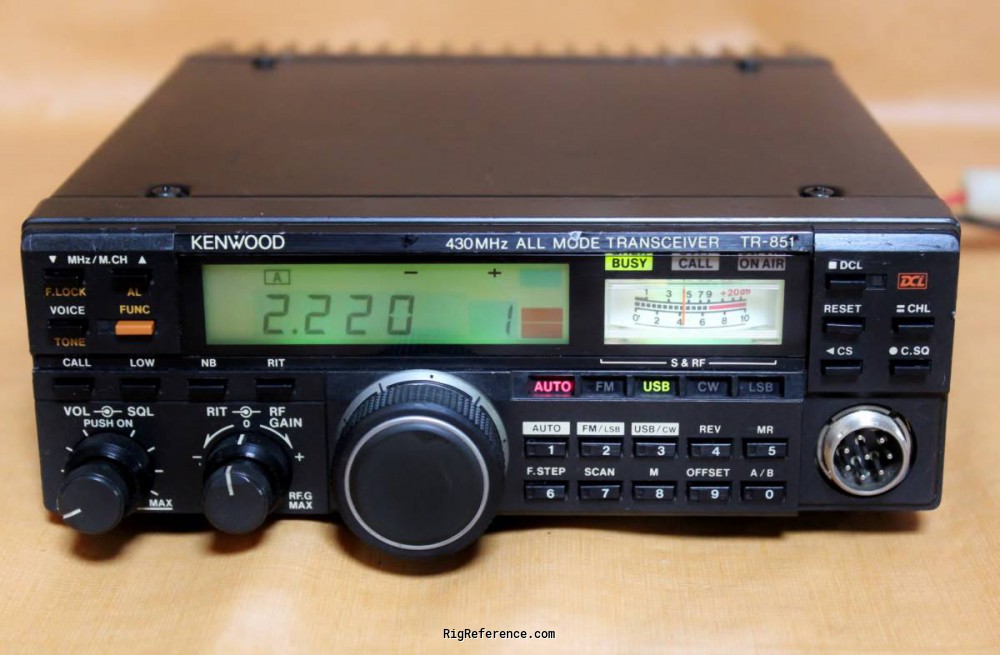

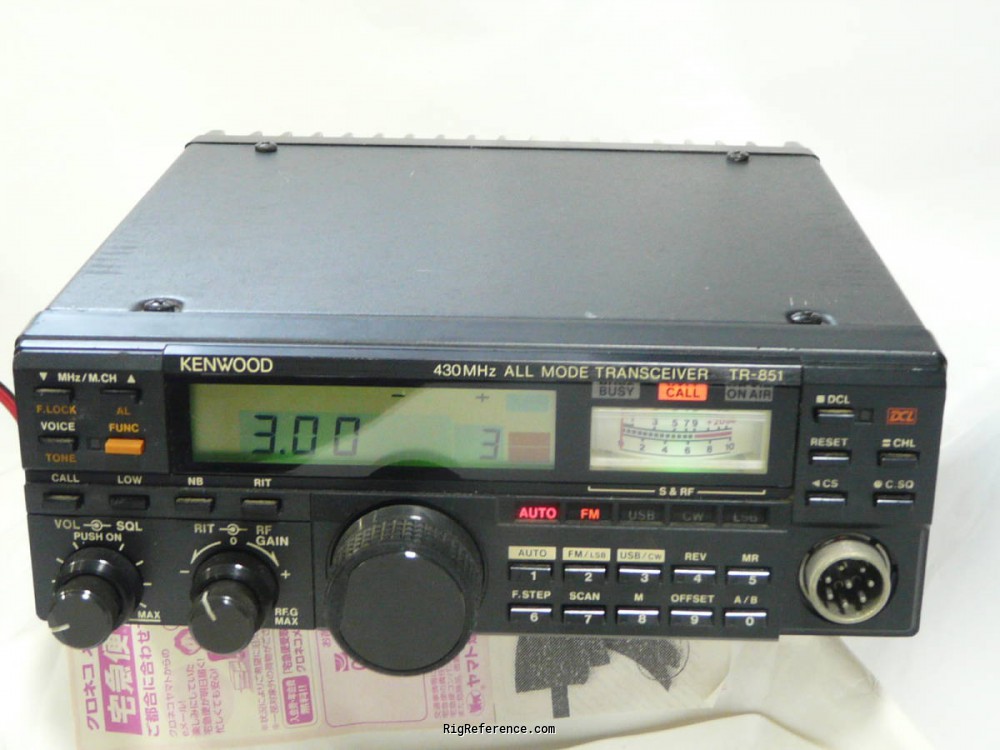

Kenwood TR-851E

Mobile UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Kenwood TR-851E rigs and spare parts on eBay Find the Kenwood TR-851E on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
430-440 MHz
TX-range
430-440 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
All mode
Sensitivity
SSB/CW: Better than 0.11 µV (10 dB S+N/N)
FM: Better than 0.18 µV (12 dB SINAD)
Selectivity
SSB/CW: 2.2 kHz (-6 dB), 4.8 kHz (-60 dB)
FM: 12 kHz (-6 dB), 24 kHz (-60 dB)
Receiver system
?
IF-frequencies
?
Image rejection
Better than 60 dB
Audio output
?

Transmitter

Modulations
All mode
RF-Output
High: 25 W, Low: 5 W

Connections

Antenna
N-type
Impedance
50 Ω

Electrical

Power requirements
11-16V DC
Current drain RX
Max 1 A
TX
Max 7.5 A

Physical

Dimensions (w×h×d)
180 × 60 × 215 mm (7.09 × 2.36 × 8.46 in)
Weight
2.50 kg (5.5 lbs)
Form factor
Mobile
Manufactured
Between 1987 and 19xx
MPN
KENWOOD-TR-000851E

Other features

Memories
10 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.
