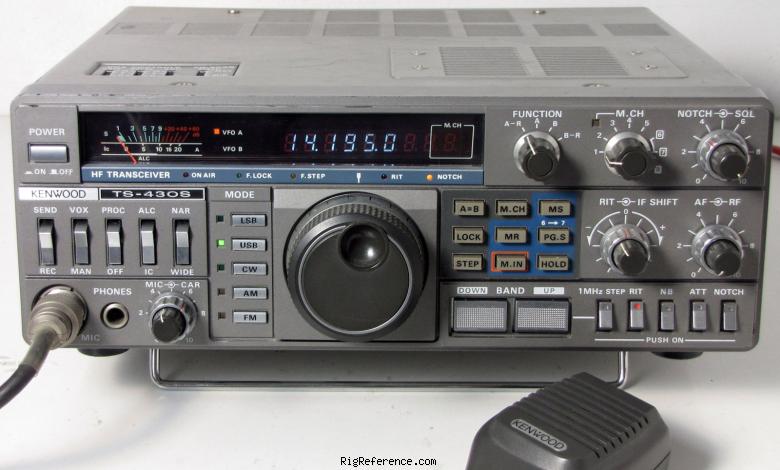

Kenwood TS-430S

Desktop Shortwave Transceiver

View all reviews (2) Add a review Add to my shack



Login or Register to upload images

Find Kenwood TS-430S rigs and spare parts on eBay Find the Kenwood TS-430S on Amazon
We receive a small fee when you buy through these links, thank you!

The Kenwood TS-430S all solid state transceiver supports SSB, CW, AM and has an option for FM. Coverage includes all amateur bands from 160 through 10 meters, including the WARC bands. Input power is rated at 250 PEP on SSB, 200W DC on CW, 120W FM (optional) and 60W AM. The general coverage receiver ranges from 150 kHz to 30 MHz.

Frequency range

RX-range
0.150-30 MHz
TX-range
10-160 m + WARC
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   FM   CW   USB   LSB
Sensitivity
AM (10 dB S/N)
0.15-0.5 MHz: 13 µV
0.5-1.8 MHz: 40 µV
1.8-30 MHz: 2.5 µV
FM (12 dB SINAD)
1.8-30 MHz: 0.7 µV
SSB/CW (10 dB S/N)
0.15-0.5 MHz: 1 µV
0.5-1.8 MHz: 4 µV
1.8-30 MHz: 0.25 µV
Selectivity
AM: 6 kHz (-6 dB), 12 kHz (-60 dB)
FM: 15 kHz (-6 dB), 32 kHz (-60 dB)
SSB/CW: 2.4 kHz (-6 dB), 4.4 kHz (-60 dB)
Receiver system
Double (AM/SSB/CW) / triple (FM) conversion
IF-frequencies
1st: 48.055 MHz
2nd: 8.83 MHz
3rd: 455 kHz
Image rejection
≥ 70 dB
Audio output
?

Transmitter

Modulations
AM   FM   CW   USB   LSB
RF-Output
SSB: 250W PEP, CW: 200W, AM: 60W, FM (optional): 120W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.8V DC
Current drain RX
1.2 A
TX
Max 20 A

Physical

Dimensions (w×h×d)
270 × 96 × 275 mm (10.63 × 3.78 × 10.83 in)
Weight
6.50 kg (14.3 lbs)
Form factor
Base Station
Manufactured
Between 1983 and 198x in Japan
MPN
KENWOOD-TS-000430S

Other features

Memories
8 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

Kenwood TS-430S Operation Manual submitted by RigReference
Kenwood TS-430S Service Manual submitted by RigReference
Kenwood TS-430S Main Wiring submitted by RigReference
Kenwood TS-430S Service Bulletins submitted by RigReference

Upload relevant documents

Show other documents.
Find the Kenwood TS-430S user manuals on eBay #ad

Reviews & stories

A real workhorse

Kenwood TS-430S, Desktop Shortwave Transceiver

I have two of these fine radios and they do everything I want from them. I do about all cw so I don't need anything fancy, just the 500hz filter. The receiver is very sensitive without being harsh, I can listen to it all day, that's more than I can say about other rigs I own. They will probably outlast me

Written by key1op on Dec 24, 2010

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 1989
USD 600.00

Excellent Rig

Kenwood TS-430S, Desktop Shortwave Transceiver

I bought mine brand new in 1983 and modified it when the new bands came out, added a couple optional filters and that was the only work I had on it until it quit in 2010 which I had already bought a Kenwood TS-200X. I always received compliments on the audio transmitted. It also worked nice on RTTY. at that time I was using a Commodore 64 for RTTY A good durable rig!

Written by N8GBU on Apr 15, 2016

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 1983
USD 0.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used Kenwood TS-430S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TS-430S is around:

  • USD 249.00
  • GBP 79.00
  • EUR 39.00
  • CAD 32.00
Year Historic price Condition Submitted by
2019 USD 250.00 Used / Good KL7SRC
2017 USD 300.00 Used / Okay kl4fc
2016 USD 375.00 Used / Good Minicowman
2015 USD 275.00 Used / Good Jebarr50@gmail.com
2009 GBP 200.00 Used / Mint ledtoe
2008 EUR 125.00 Used / Good elmer
2008 EUR 225.00 Used / Good elmer
2005 CAD 200.00 Used / Good VE6TEQ
1989 USD 600.00 Used / Good key1op
