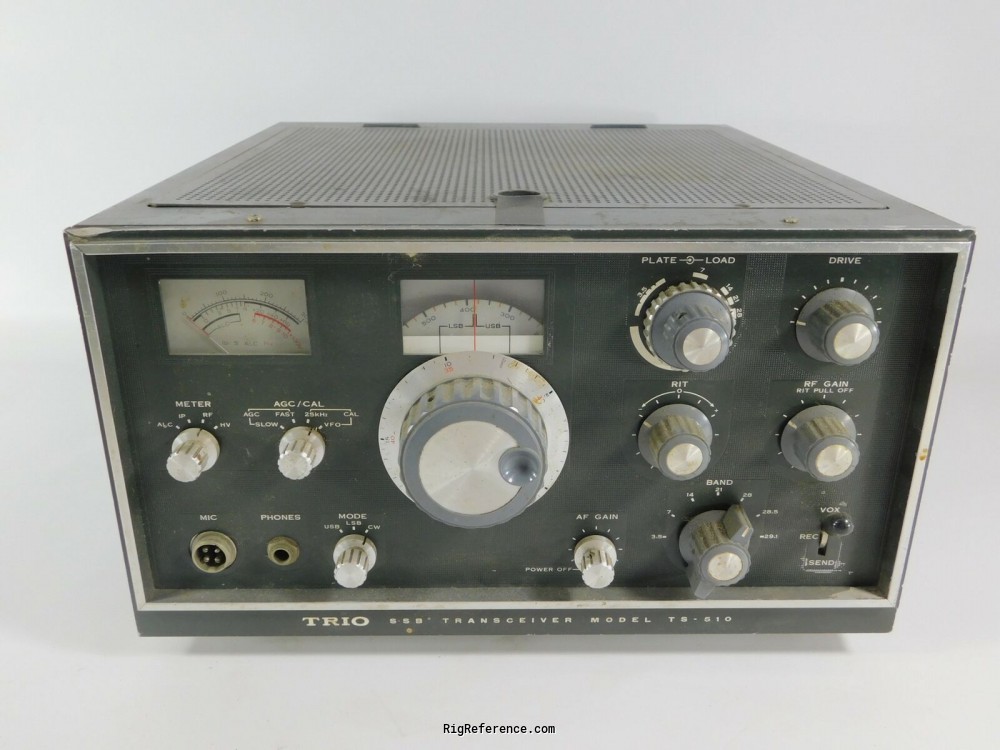

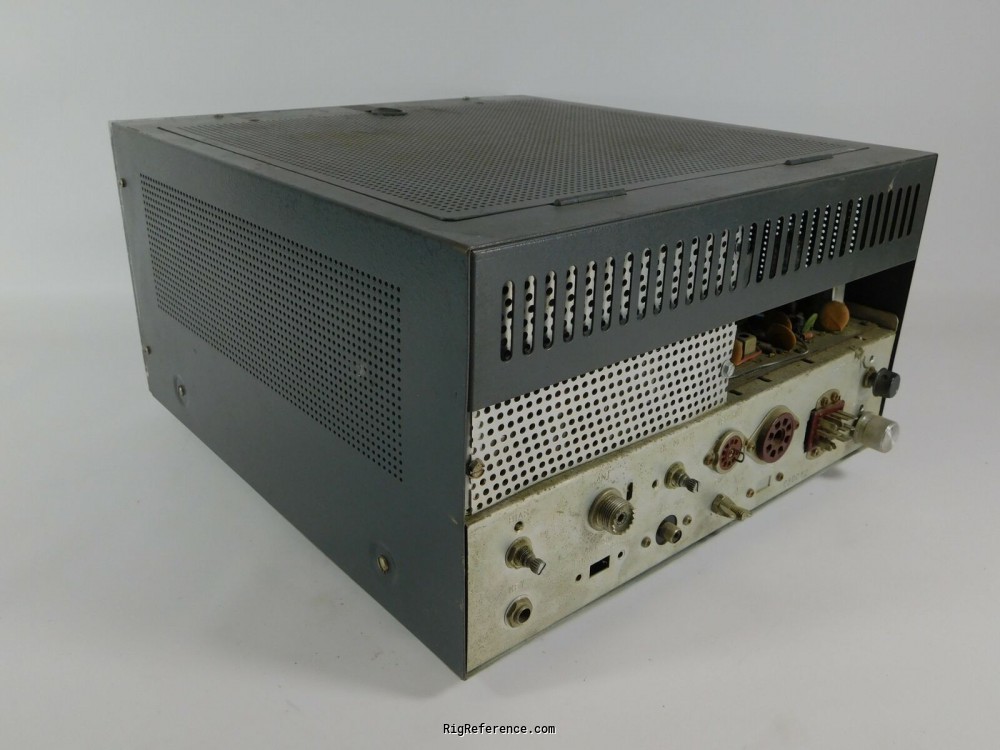

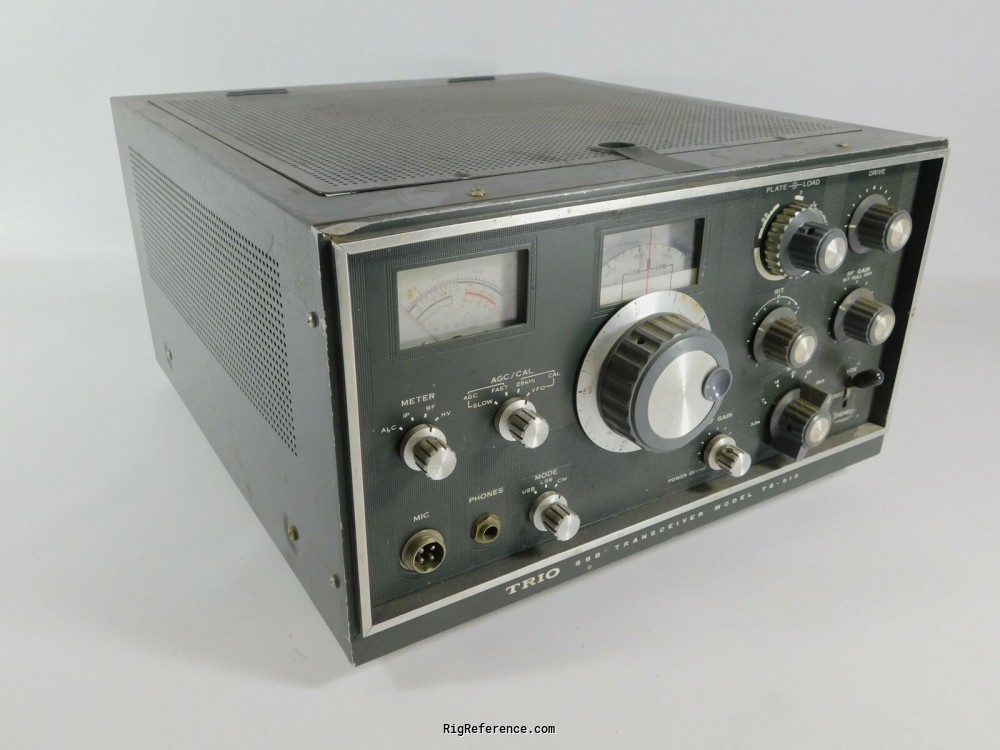

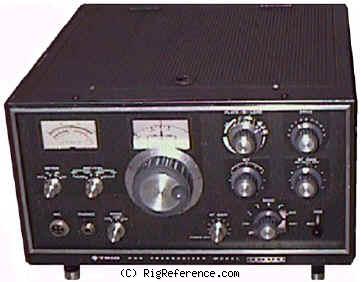

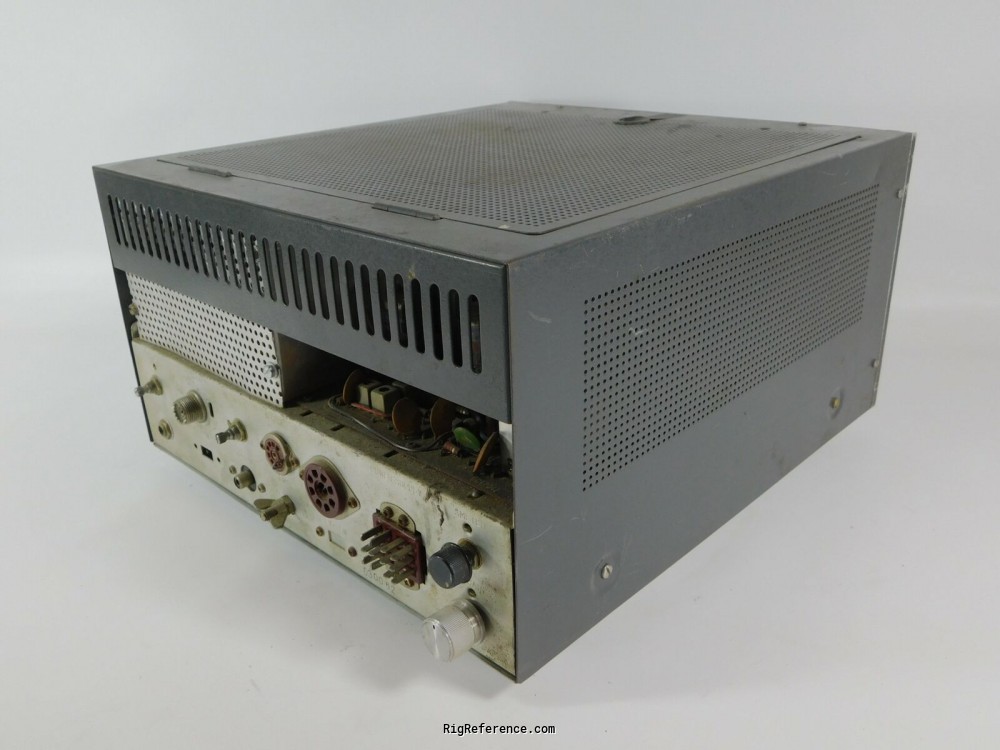

The Kenwood TS-510 is a 10-80 m transceiver. Frequency stability is less than 100 Hz after 30 minute warm-up, less than 2 kHz in first hour of operation. Image rejection is 50 dB. RF output is 160 W (input) on 15-80 m and 120 W (input) on 10 m. Audio output is > 1 watt (with 10% distortion). Power requirements are Mains (with PS-510). Dimensions are 215 × 330 × 345 mm. Weight is 9.5 kg. Current drain is 180 W max in receive and 315 W max in transmit.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- Less than 100 Hz after 30 minute warm-up, less than 2 kHz in first hour of operation
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 10-80 m
- Modulations
- CW SSB
- Sensitivity
- 15-80 m: better than 0.5 µV (10 dB S/N)
10 m: better than 1.5 µV (10 dB S/N) - Selectivity
- 1.2 kHz (-6 dB), 2.4 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 50 dB
- Audio output
- > 1 watts (with 10% distortion)
Transmitter
- TX-range
- 10-80 m
- Modulations
- CW SSB
- RF-output
- 15-80 m: 160 W (input), 10 m: 120 W (input)

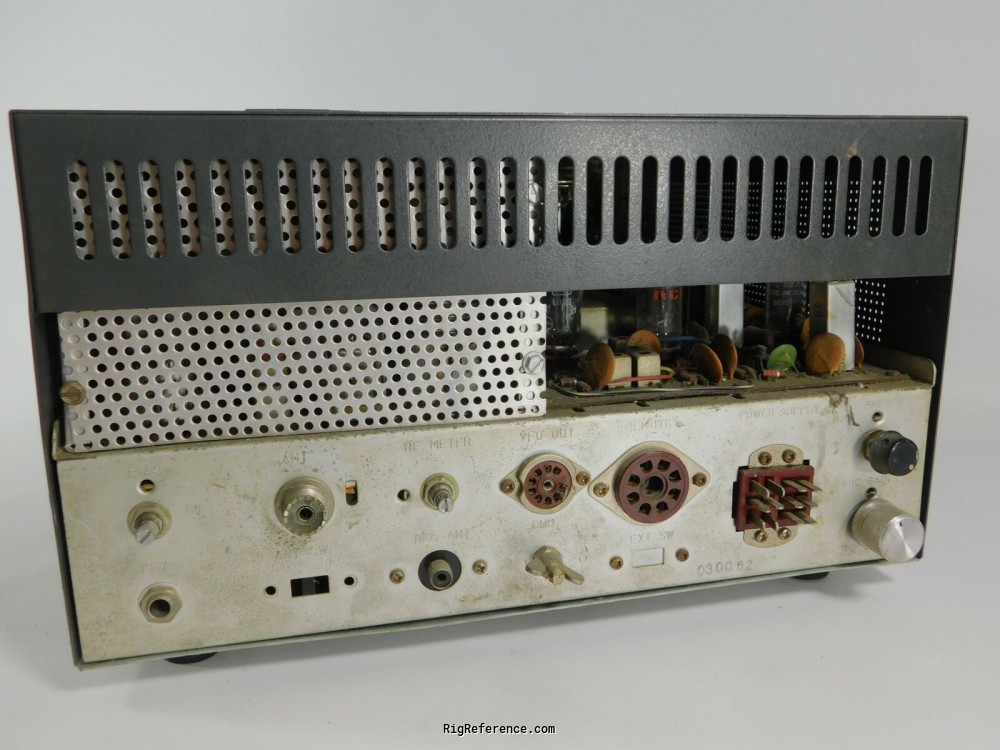

Connections
- Antenna
- SO-239
- Impedance
- 50/75Ω
- Other
- -
Electrical
- Power requirements
- Mains (with PS-510)
- Current drain RX
- 180 W max
- TX
- 315 W max
Physical
- Dimensions (w×h×d)
- 330 × 215 × 345 mm (12.99 × 8.46 × 13.58 in)
- Weight
- 9.50 kg (21.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 197x and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3488
- MPN
- KENWOOD-TS-000510
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-510. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TS-510 in Good condition is around:
- USD 125 ~ USD 330
These estimates are based on the following prices:
