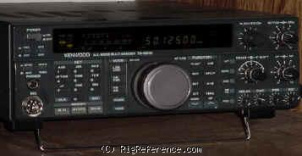

The Kenwood TS-690S is the same as the Kenwood TS-450S, but adds coverage of the 6 meter amateur band with 50 watts and two separate SO-239 antenna jacks (one for HF and one for 6 meters).
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 0.5-30 / 50-54 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB
- RF-output
- HF: 100 W (AM: 40 W), 6 m: 50 W (AM: 20 W)
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 2.5 A
- TX
- Max 20.5 A
Physical
- Dimensions (w×h×d)
- 270 × 96 × 328 mm (10.63 × 3.78 × 12.91 in)
- Weight
- 6.90 kg (15.2 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3500
- MPN
- KENWOOD-TS-000690S
Manuals, diagrams and brochures
- Kenwood TS-450S-690S External Control User Manuel PDF - Unknown size, submitted by RigReference
- Kenwood TS-450S-690S Service Manual PDF - Unknown size, submitted by RigReference
- Kenwood TS-450S-690S User Manual PDF - Unknown size, submitted by RigReference
- Kenwood TS-450S / TS-690S Gebruiksaanwijzing PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-690S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Kenwood TS-690S is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
