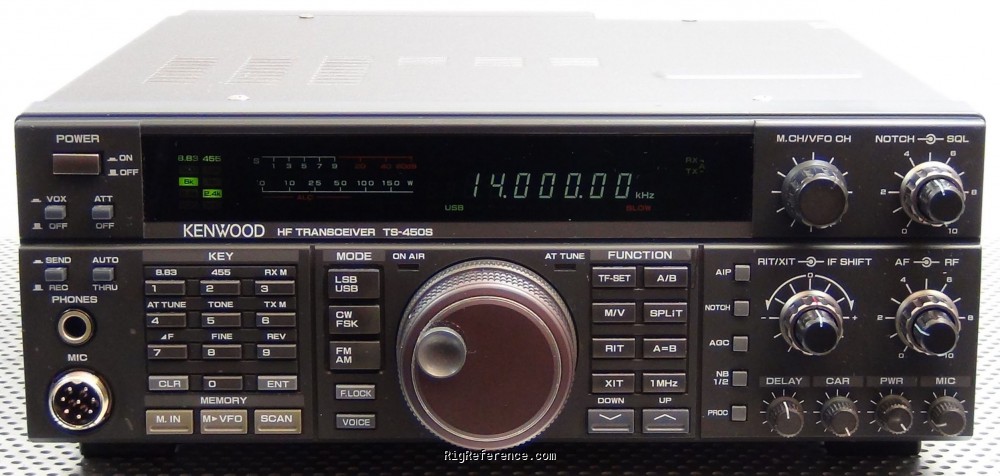

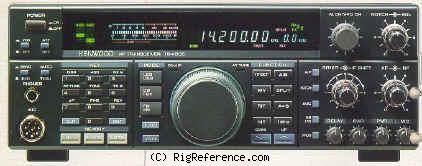

Kenwood TS-450S Desktop Shortwave Transceiver

  Add a review   View all reviews (3)   Add to my shack




The Kenwood TS-450S is a formidable transceiver covering 160 through 10 meters including the WARC bands with 100 watts input (40W AM). The TS-450S supports many advanced features such as keypad entry, VOX, 100 memories, XIT, RIT, Notch, IF Shift, Squelch and digital meter. This radio has a carry handle. Requires 13.8 VDC at 20.5 amps. Digital Signal Processing (DSP) in both transmit and receive modes (with optional DSP-100 installed) provide greatly enhanced signal purity. MC-43S hand mic included.

The Kenwood TS-450SAT includes the AT-450 antenna tuner factory installed.

The Kenwood TS-690S adds coverage of the 6 meter amateur band with 50 watts and a separate antenna jack on the rear panel

Frequency range

RX-range
0.5-30 MHz
TX-range
10-160 m + WARC
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Find the Kenwood TS-450S on ebay

Receiver

Modulations
AM   FM   CW   SSB
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
AM   FM   CW   SSB
RF-Output
Max 100 W

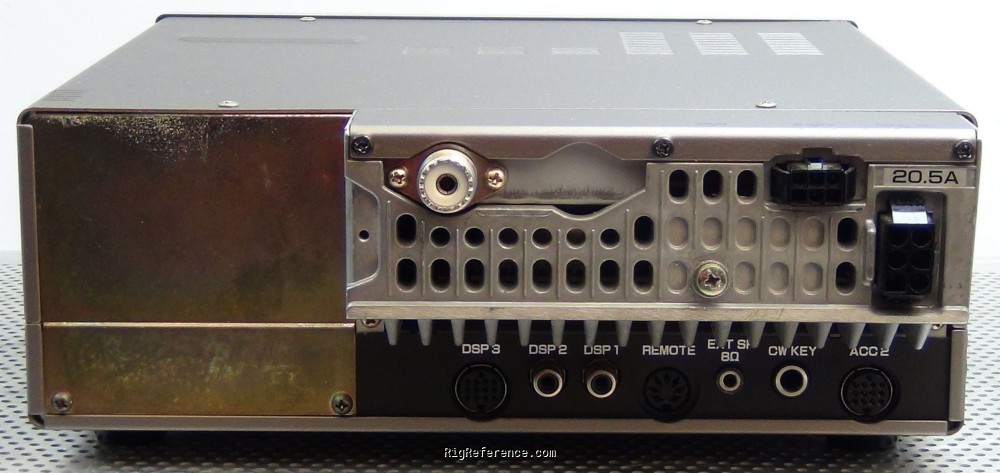

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
-
TX
Max 20 A

Physical

Dimensions (w×h×d)
270 × 96 × 305 mm (10.63 × 3.78 × 12.01 in)
Weight
7.50 kg (16.5 lbs)
Form factor
Base Station
Manufactured
Between 198x and 199x

Other features

Memories
100 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

Kenwood TS-450S-690S External Control User Manuel
Kenwood TS-450S-690S Service Manual
Kenwood TS-450S-690S User Manual
Kenwood TS-450S / TS-690S Gebruiksaanwijzing

Can you supply additional documents? Please get in touch!
Show more Kenwood documents...

Have you spotted an error or can you provide more information? Let us know!

Related

**) We get a small fee when you buy something through these Amazon links. This helps pay the bills to keep this site up-and-running.

Reviews

Reliable Radio

Kenwood TS-450S, Desktop Shortwave Transceiver

I have owned my TS-450S/AT for about six months and thoroughly enjoy it. It has the SSB and CW filter options. The ATU tunes very fast and has a pretty good range although it doesn't tune anything that is 4:1 or higher. Audio is clear and clean and CW operation is really a pleasure. This is a "keeper" class of radio, excellent as a back-up rig or spare. No menus to deal with and get lost, pleasant display. If you find a nice one for sale, it's well worth having. It is a cut above the great TS-440 which is still in demand.

Written by K7IN on Oct 22, 2010

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2010
USD 550.00

Top TRX

Kenwood TS-450S, Desktop Shortwave Transceiver

clean receiver, unfortunately, no DSP integrates, for it, however, really filter. To procure hard accessories, but with a little know how to build themselves.

Written by do5bfh on Sep 27, 2011

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2011
EUR 300.00

Excellent tx and rx

Kenwood TS-450S, Desktop Shortwave Transceiver

Kenwood TS 450 is is wonderful rig, with the help of inbuilt tuner I am working all bands with my inverted VEE 20 and 40 meter single feeder antenna. de vu2ob

Written by sreeypn on Feb 23, 2012

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2010
USD 400.00

Prices

Estimating the value of a rig can be challenging. The graph below shows historical prices paid by hams over the years. May it guide you to good fortune...

Price Condition Year User
USD 550.00 Mint / Used 2010 K7IN
USD 400.00 Mint / Used 2010 sreeypn
EUR 300.00 Good / Used 2011 do5bfh
USD Good / Used 2013 baycitylarry
EUR 250.00 Good / Used 2015 F5VLB
USD Good / Used 2015 Mburgess
To submit a price, either review the rig or add it to your shack.
