Kenwood TS-700G

Desktop VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

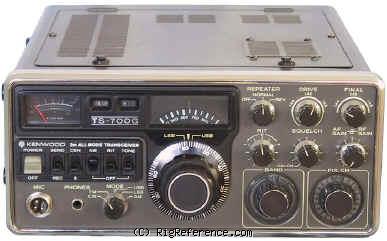

The Kenwood TS-700G is a desktop VHF transceiver. It covers 144-146 MHz for both receive and transmit. The RF output is FM/SSB/CW: 10 W, AM: 3 W. It requires 12-16V DC or mains 120/240 VAC power. Dimensions are 124 × 278 × 320 mm. It weighs 11 kg. The current drain is 0.8-1A when receiving and max 4 A when transmitting.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 144-146 MHz
Modulations: AM FM CW SSB
Sensitivity: AM: <2 µV (10 dB S/N)
FM: <1 µV (26 dB S/N)
SSB/CW: <0.5 µV (10 dB S/N)
Selectivity: AM/SSB/CW: <4.8 kHz (-60 dB)
FM: <40 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: >60 dB
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: AM FM CW SSB
RF-output: FM/SSB/CW: 10 W, AM: 3 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 12-16V DC or mains 120/240 VAC
Current drain RX: 0.8-1A
TX: Max 4 A

Physical

Dimensions (w×h×d): 278 × 124 × 320 mm (10.94 × 4.88 × 12.60 in)
Weight: 11.00 kg (24.3 lbs)
Form factor: Base Station
Manufactured: Between 197x and 197x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3502
MPN: KENWOOD-TS-000700G
