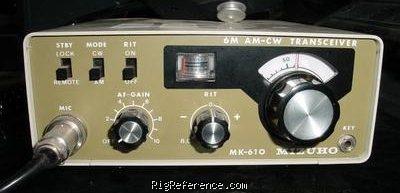

Mizuho MK-610

VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Mizuho MK-610 is a VHF transceiver covering 50-54 MHz for both receive and transmit. RF output is 1 W. Power requirements are 12V DC (8R14 / C batteries). The radio weighs 1.5 kg, measures 63 × 165 × 185 mm. Current drain in receive mode is 50 mA, and max 400 mA in transmit mode.

General characteristics

HAM bands: 6m
Frequency stability: ?
Tuning steps: Continuous
Memories: None

Receiver

RX-range: 50-54 MHz
Modulations: AM CW
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 50-54 MHz
Modulations: AM CW
RF-output: 1 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12V DC (8R14 / C batteries)
Current drain RX: 50 mA
TX: Max 400 mA

Physical

Dimensions (w×h×d): 165 × 63 × 185 mm (6.50 × 2.48 × 7.28 in)
Weight: 1.50 kg (3.3 lbs)
Form factor: Unknown
Manufactured: Between 1976 and 19xx in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3586
MPN: MIZUHO-MK-000610

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Mizuho MK-610. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Mizuho MK-610 is around:

USD 224 ~ USD 415

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
