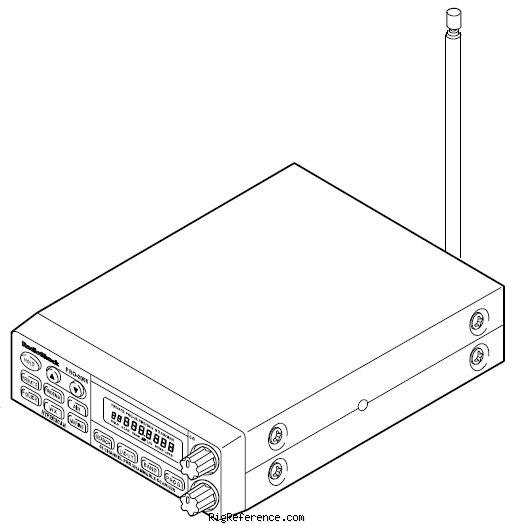

RadioShack / Realistic Pro-2056

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

50 channels in bank(s) @ 100 channels/second

Receiver

RX-range

29-54 / 108-174 / 406-512 MHz
7 fixed weather channels (162.xx MHz)

Modulations

AM   FM

Sensitivity

29–54 MHz: 0.4 µV
108–136.975 MHz: 1.7 µV
137–174 MHz: 0.8 µV
406–512 MHz: 0.6 µV
(20 dB S/N with 60% modulation for AM, 3 kHz deviation for FM)

Selectivity

?

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 10.85 MHz
2nd: 450 kHz

Image rejection

?

Audio output

1.8 W max

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

130-400 mA

TX

-

Physical

Dimensions (w×h×d)

130 × 50 × 175 mm (5.12 × 1.97 × 6.89 in)

Weight

755 gr (1.7 lbs)

Form factor

Mobile

Manufactured

Between 19xx and 19xx

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

3791

MPN

RADIOSHACK-/-REALISTIC-PRO-002056

Manuals, diagrams and brochures

RadioShack PRO-2056 Owner's Manual PDF - Unknown size, submitted by RigReference
