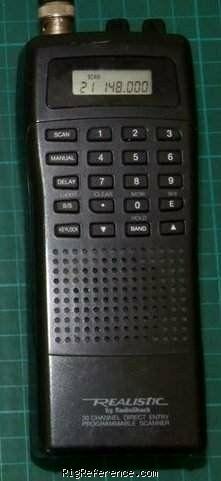

RadioShack / Realistic Pro-28

Handheld VHF/UHF Scanner / receiver

Add a review Add to my shack


Login or Register to upload images

Find RadioShack / Realistic Pro-28 rigs and spare parts on eBay Find the RadioShack / Realistic Pro-28 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
5 / 12.5 kHz
Memories
30 channels in 1 bank(s) @ 15 channels/second

Receiver

RX-range
UK: 66-88 / 137-174 /406-512 MHz
USA: 29-54 / 137-174 / 406-512 MHz
Modulations
FM
Sensitivity
29-54 MHz: 0.4 µV
137-174 MHz: 0.5 µV
406-512 MHz: 0.6 µV
20 dB S/N at 3 kHz deviation
Selectivity
10 kHz (-6 dB)
17 kHz (-50 dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.85 MHz
2nd: 450 kHz
Image rejection
?
Audio output
500 mW, 8 ohms

Connections

Antenna
BNC
Impedance
50 Ω
Other
-

Electrical

Power requirements
6 V DC or 4×AA/LR6
Current drain RX
45~125 mA
TX
-

Physical

Dimensions (w×h×d)
68.5 × 162 × 39 mm (2.70 × 6.38 × 1.54 in)
Weight
250 gr (8.8 oz)
Form factor
Handheld
Manufactured
Between 19xx and 19xx

Other features

Usage
Amateur / Ham radio operators
Features + options
8-Digit LCD Display
Band Search
Direct Search
Lockout Function
Search Skip
Two-Second Scan Delay
Weather Band Key
...
Accessories
-
RigReference ID
3797
MPN
RADIOSHACK-/-REALISTIC-PRO-000028

Manuals, diagrams and brochures

RadioShack PRO-28 Owner's Manual PDF - 441.9 kB, submitted by Gerd
