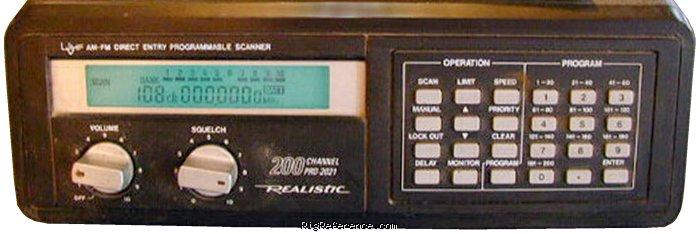

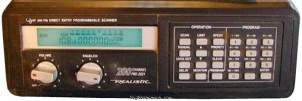

RadioShack / Realistic Pro-2021

Mobile VHF/UHF Scanner / receiver

Add a review Add to my shack


Login or Register to upload images

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
200 channels in 10 bank(s) @ 8 channels/second

Receiver

RX-range
30-54 / 108-136 / 138-174 / 380-512 MHz (USA)
68-88 / 108-136 / 138-174 / 380-512 MHz (EU)
Modulations
AM   FM
Sensitivity
AM
108-136 MHz: 2.0 µV
FM
68-88 MHz: 0.5 µV
138-174 MHz: 1.0 µV
380-512 MHz: 1.0 µV
Selectivity
± 9 kHz @ -6 dB
± 15 kHz @ -50 dB
Filters
1 crystal + 1 ceramic
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.7 MHz
2nd: 455 kHz
Image rejection
≥ 50 dB
Audio output
1.5 W max

Connections

Antenna
KOK1 (Motorola/DIN41585)
Impedance
50Ω
Other
-

Electrical

Power requirements
12V DC or mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
260 × 80 × 200 mm (10.24 × 3.15 × 7.87 in)
Weight
2.00 kg (4.4 lbs)
Form factor
Mobile
Manufactured
Between 19xx and 19xx

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
3854
MPN
RADIOSHACK-/-REALISTIC-PRO-002021
