General characteristics

HAM bands
6m
Frequency stability
?
Tuning steps
?
Memories
32 channels in 1 bank(s)

Receiver

RX-range
0.15-30 / 76-108 / 116-136 MHz
Modulations
AM   W-FM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

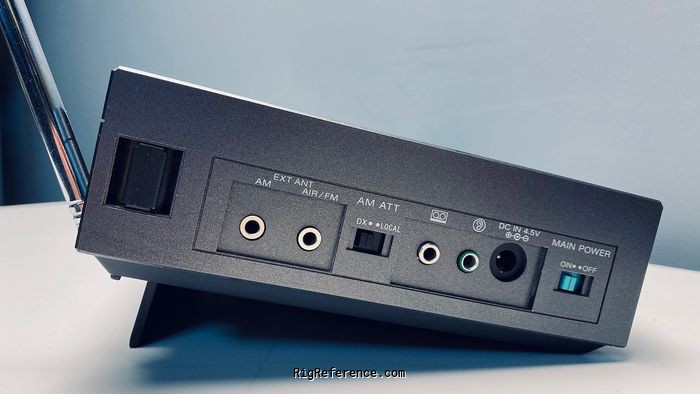

Connections

Antenna
Built-in ferrite bar + Built-in sweep
Impedance
?
Other
-

Electrical

Power requirements
4.5V DC external or 3R14 + 3R6 batteries
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
290 × 160 × 50 mm (11.42 × 6.30 × 1.97 in)
Weight
1.80 kg (4.0 lbs)
Form factor
Handheld
Manufactured
Between 1985 and 2003 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
Scanning. Clock/timer.
Accessories
-
RigReference ID
4011
MPN
SONY-ICF-002001D

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
best hf portable 7 years ago by clally47

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sony ICF-2001D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Sony ICF-2001D is around:

  • EUR 152.00
  • GBP 6.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 EUR 160.00 Used / Good RigReference
1994 GBP 320.00 New / Mint Rahob
