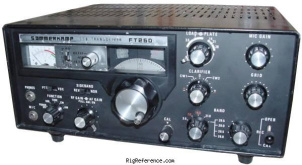

Sommerkamp FT-250

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

Continuous

Memories

None

Receiver

RX-range

10-80 m

Modulations

AM   CW   SSB

Sensitivity

0.5 µV (10 dB S/N)

Selectivity

2.3 kHz (-6 dB), 4 kHz (-60 dB)

Filters

?

Receiver system

Single conversion superheterodyne Tubes

IF-frequencies

9 MHz

Image rejection

50 dB

Audio output

?

Transmitter

TX-range

10-80 m

Modulations

AM   CW   SSB

RF-output

100 W / 240 W (PEP input)

Connections

Antenna

SO-239

Impedance

50-75Ω

Other

-

Electrical

Power requirements

?V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

335 × 140 × 280 mm (13.19 × 5.51 × 11.02 in)

Weight

17.50 kg (38.6 lbs)

Form factor

Base Station

Manufactured

Between 19xx and 197x

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

4269

MPN

SOMMERKAMP-FT-000250

Manuals, diagrams and brochures

Sommerkamp FT-250 Instruction Manual PDF - 2.63 MB, submitted by Gerd



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sommerkamp FT-250. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Sommerkamp FT-250 is around:

• USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
