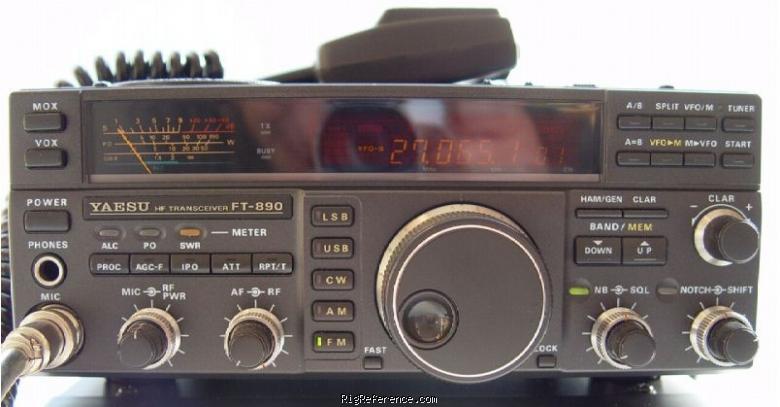

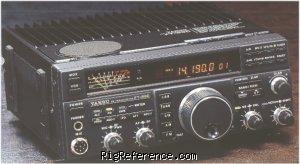

The Yaesu FT-890 HF-transceiver covers 160 to 10 meters and offer advanced features in an affordable package. The receiver tunes from 100 kHz to 30 MHz giving it 'general coverage'. Power output is 100 watts in CW, SSB, FM and 25 watts AM. The FT-890 features IF Shift, IF Notch and 16-bit main CPU.

The Yaesu FT-890AT includes the internal ATU-2 automatic antenna tuner.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
10-160 m + WARC
Modulations
AM   FM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
10-160 m + WARC
Modulations
AM   FM   CW   SSB
RF-output
?

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
?
TX
20 A max

Physical

Dimensions (w×h×d)
238 × 93 × 243 mm (9.37 × 3.66 × 9.57 in)
Weight
5.60 kg (12.4 lbs)
Form factor
Base Station
Manufactured
Between 1990 and 1994

Other features

Usage
Amateur / Ham radio operators
Features + options
Electronic Keyer
IF Notch
IF Shift
Dual VFOs
Noise Blanker
Break-in CW
Attenuator
Speech Compressor
VOX
Accessories
-
RigReference ID
4364
MPN
YAESU-FT-000890

Manuals, diagrams and brochures

Yaesu FT-890 Schematic Diagram PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
ft-890at 8 years ago by burns8695

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-890. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-890 is around:

  • EUR 300.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2010 EUR 755.00 Used / Good eBay
