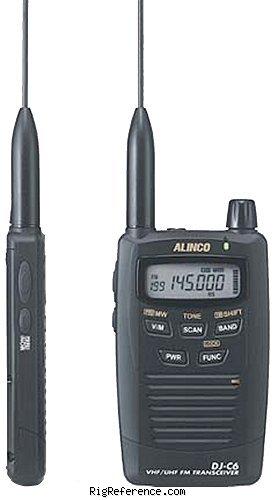

Alinco DJ-C6E

Handheld VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Frequency range

RX-range
144-146 / 430-440 MHz
TX-range
144-146 / 430-440 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
FM
Sensitivity
0.17 µV (12 dB SINAD)
Selectivity
>12 kHz (-6 dB), <35 kHz (-60 dB)
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
FM
RF-Output
300/300 mW (500 mW with 6 VDC external)

Connections

Antenna
SMA
Impedance
50 Ω

Electrical

Power requirements
3.7V DC Li-Io pack or 6V DC external
Current drain RX
19-70 mA
TX
Max 320 mA

Physical

Dimensions (w×h×d)
58 × 96 × 15 mm (2.28 × 3.78 × 0.59 in)
Weight
98 gr (3.5 oz) including battery
Form factor
Handheld
Manufactured
Between 2005 and 200x
MPN
ALINCO-DJ-C000006E

Other features

Memories
200 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
CTCSS. PC-programmable
Accessories
?

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DJ-C6E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Alinco DJ-C6E is around:

  • EUR 73.00 ~ EUR 122.00
Year Historic price Condition Submitted by
2013 EUR 149.00 Used / Good thiecom.de
2010 EUR 149.00 New / Good thiecom.de
