Same specifications as the hand held Yupiteru MVT-7000.
Reception between 0.1 and 8 MHz possible with reduced sensitivity.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
5 / 10 / 12.5 / 25 / 50 / 100 kHz
Memories
200 channels in 10 bank(s) @ 15 channels/second

Receiver

RX-range
8-1300 MHz
Modulations
AM   N-FM   W-FM
Sensitivity
FM: 8-1000 MHz: 0.5µV (SINAD 12db)
FM: 1000-1300 MHz: 1.0µV
AM: 0.5µV (S/N 10db)
WFM: 0.75µV (SINAD 12dB)
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
700 mW, 8 ohm

Connections

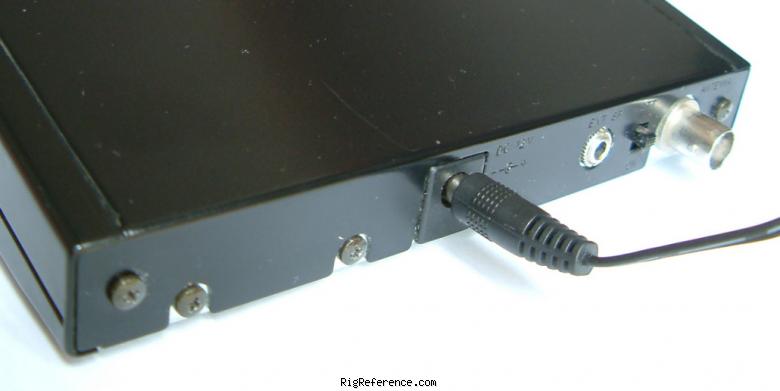

Antenna
BNC
Impedance
50 Ω
Other
-

Electrical

Power requirements
12V DC
Current drain RX
420 mA max, 210 mA sleep mode
TX
-

Physical

Dimensions (w×h×d)
160 × 45 × 155 mm (6.30 × 1.77 × 6.10 in) excl. protruding parts
Weight
650 gr (1.4 lbs)
Form factor
Mobile
Manufactured
Between 19xx and 19xx

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4411
MPN
YUPITERU-MVT-008000

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
Nice multi-band receiver 11 years ago by elmer

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yupiteru MVT-8000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yupiteru MVT-8000 is around:

  • EUR 20.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2009 EUR 65.00 Used / Good elmer
