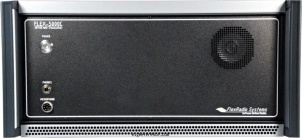

FlexRadio FLEX-5000C Headless HF/VHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



The FLEX-5000C is the successor of the FLEX-5000A. The FLEX-5000 differs from other headless rigs (like the Icom IC-PCR2500 and WinRadio series) in that the FlexRadio rigs have a PC build into the box. All you need to do is hook up a keyboard, mouse and monitor and your ready to go. The build-in Mini-ITX computer features a Intel Core 2 Duo processor, 1GB of RAM and a 160 GB hard drive and runs Windows XP.

The supplied open source software, PowerSDR, creates a powerful and flexible solution. The number of memories is limited only by the PC hard disk space.

Frequency range

RX-range
0.01-60 MHz
TX-range
160-6m
HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m
Stability
±0.5 ppm 32 °F to 122 °F (0 °C to +50 °C)
Tuning steps
0.001-10.000 MHz kHz
Filters
Software controlled

Receiver

Modulations
AM   N-FM   CW   USB   LSB   DSB   RTTY
Sensitivity
Preamp off: 1.3 µV @ 14MHz
Preamp on: 0.3 µV @ 14MHz
(-123/-133 dBm in 500 Hz)
Selectivity
CW 500 Hz –6/-60 dB: 500/640 (–6/–60 dB)
SSB 2.4 kHz –6/-60 dB: 2.39/2.54 (–6/–60 dB)
AM 6.6 kHz –6/-60 dB: 6.60/6.74 (–6/–60 dB)
Receiver system
SDR, Direct conversion, low IF
IF-frequencies
Software selectable from DC to 20 KHz
Image rejection
70 dB or better (160 - 6m Amateur bands)
Audio output
7 W + Stereo line-out, accepts PC type speakers

Transmitter

Modulations
AM   N-FM   CW   USB   LSB   DSB   RTTY
RF-Output
CW/SSB: 1-100 W PEP, AM: 2-25W

Connections

Antenna
BNC + SO-239
Impedance
50Ω

Electrical

Power requirements
13.8V DC ± 10%
Current drain RX
1.5A
TX
30A max

Physical

Dimensions (w×h×d)
449 × 221 × 373 mm (17.68 × 8.70 × 14.69 in)
Weight
16.50 kg (36.4 lbs)
Form factor
Headless
Manufactured
Between 2008 and 20xx in USA
MPN

Other features

Memories
100000 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
SDR (Software Defined Radio)
