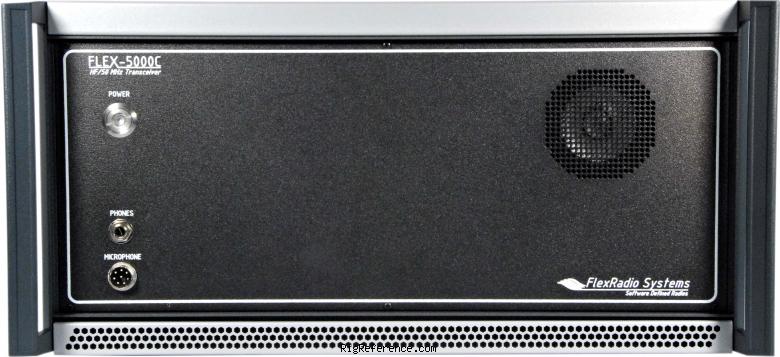

The FLEX-5000C is the successor of the FLEX-5000A. The FLEX-5000 differs from other headless rigs (like the Icom IC-PCR2500 and WinRadio series) in that the FlexRadio rigs have a PC build into the box. All you need to do is hook up a keyboard, mouse and monitor and your ready to go. The build-in Mini-ITX computer features a Intel Core 2 Duo processor, 1GB of RAM and a 160 GB hard drive and runs Windows XP.
The supplied open source software, PowerSDR, creates a powerful and flexible solution. The number of memories is limited only by the PC hard disk space.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m
- Frequency stability
- ±0.5 ppm 32 °F to 122 °F (0 °C to +50 °C)
- Tuning steps
- 0.001-10.000 MHz kHz
- Memories
- 100000 channels in 1 bank(s)
Receiver
- RX-range
- 0.01-60 MHz
- Modulations
- AM N-FM CW USB LSB DSB RTTY
- Sensitivity
- Preamp off: 1.3 µV @ 14MHz
Preamp on: 0.3 µV @ 14MHz
(-123/-133 dBm in 500 Hz) - Selectivity
- CW 500 Hz –6/-60 dB: 500/640 (–6/–60 dB)
SSB 2.4 kHz –6/-60 dB: 2.39/2.54 (–6/–60 dB)
AM 6.6 kHz –6/-60 dB: 6.60/6.74 (–6/–60 dB) - Filters
- Software controlled
- Receiver system
- SDR, Direct conversion, low IF
- IF-frequencies
- Software selectable from DC to 20 KHz
- Image rejection
- 70 dB or better (160 - 6m Amateur bands)
- Audio output
- 7 W + Stereo line-out, accepts PC type speakers
Transmitter
- TX-range
- 160-6m
- Modulations
- AM N-FM CW USB LSB DSB RTTY
- RF-output
- CW/SSB: 1-100 W PEP, AM: 2-25W

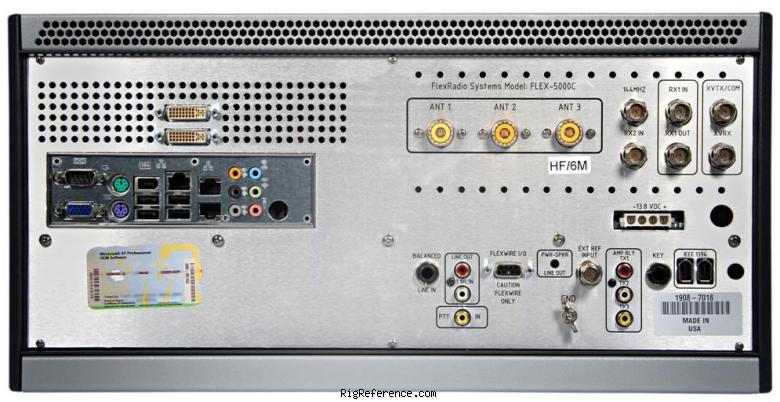

Connections
- Antenna
- BNC + SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC ± 10%
- Current drain RX
- 1.5A
- TX
- 30A max
Physical
- Dimensions (w×h×d)
- 449 × 221 × 373 mm (17.68 × 8.70 × 14.69 in)
- Weight
- 16.50 kg (36.4 lbs)
- Form factor
- Headless
- Manufactured
- Between 2008 and 20xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- SDR (Software Defined Radio)
- Accessories
- -
- RigReference ID
- 4485
- MPN
- FLEXRADIO-FLEX-005000C
