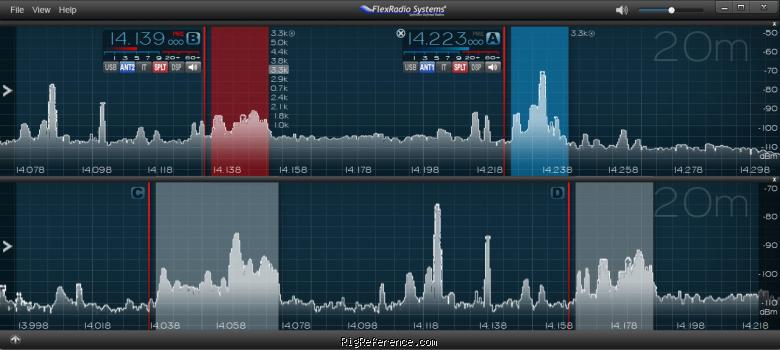

Price when new in 2013: USD 7500. Part of the FLEX-6000 signature series with SmartSDR.

General characteristics

HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m
Frequency stability
0.02 p.p.m. OCXO
Tuning steps
1 Hz
Memories
?

Receiver

RX-range
30 kHz – 77 MHz
Modulations
AM   N-FM   CW   USB   LSB   DSB   RTTY
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
SDR, Direct Digital Sampling
IF-frequencies
?
Image rejection
≥ 100 dB
Audio output
1W diagnostic speaker

Transmitter

TX-range
160-6 m
Modulations
AM   N-FM   CW   USB   LSB   DSB   RTTY
RF-output
1-100W SSB, CW, FM, RTTY, DIGITAL; 1-30W AM

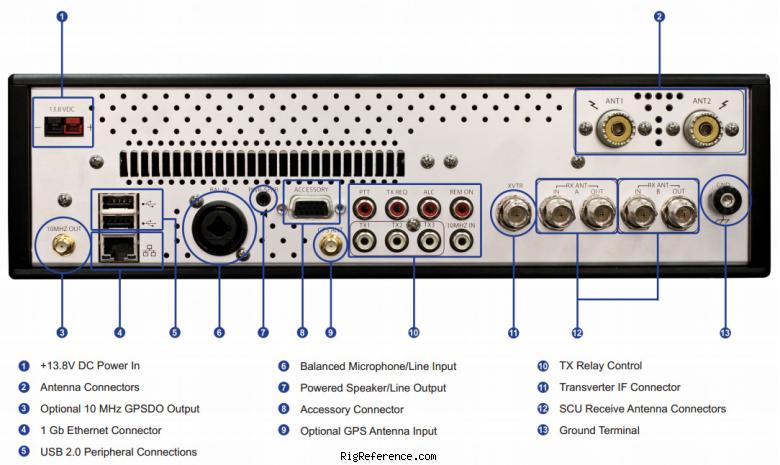

Connections

Antenna
BNC + SO-239
Impedance
5-500Ω
Other
-

Electrical

Power requirements
13.8V DC ± 15%
Current drain RX
1.5 A
TX
23 A

Physical

Dimensions (w×h×d)
330 × 305 × 102 mm (12.99 × 12.01 × 4.02 in) with feet
Weight
5.90 kg (13.0 lbs)
Form factor
Headless
Manufactured
Between 2013 and 20xx in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
SDR (Software Defined Radio)
Ethernet

CPU / DSP: TMS320DM8168CYG4
RISC processor: 1.4 GHz ARM CortexTM-A8/NEON
DSP processor: 1.2 GHz TMS320C647x 32-bit FP
DSP Floating Point Operations: 121 GFLOPS
Accessories
-
RigReference ID
5943
MPN
FLEXRADIO-FLEX-006700

Manuals, diagrams and brochures

FlexRadio FLEX-6000 Signature-series brochure PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used FlexRadio FLEX-6700. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the FlexRadio FLEX-6700 is around:

  • USD 5392.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2013 USD 7500.00 New / Mint RigReference
