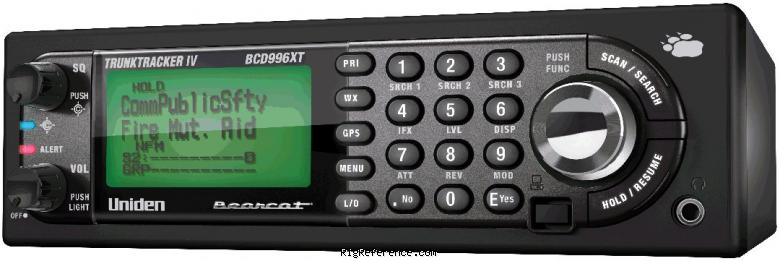

Uniden-Bearcat BCD996XT

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

5 / 10 / 12.5 / 20 / 25 / 50 / 100 kHz

Memories

2500 channels in 1 bank(s) @ 100 channels/second

Receiver

RX-range

25-512 / 758-824 / 850-869 / 894-960 / 1240-1300 MHz
Cellular blocked

Modulations

AM   FM   W-FM   APCO-25

Sensitivity

25-28 MHz AM: 0.3 µV
28-54 MHz NFM: 0.3 µV
54-72 MHz WFM: 0.5 µV
72-76 MHz FM: 0.2 µV
76-108 MHz WFM: 0.5 µV
108-137 MHz AM: 0.3 µV
137-174 MHz NFM: 0.2 µV
174-216 MHz WFM: 0.5 µV
216-225 MHz NFM: 0.3 µV
225-378 MHz AM: 0.3 µV
380-512 MHz NFM: 0.3 µV
758-960 MHz NFM: 0.3 µV
1240-1300 MHz NFM: 0.4 µV

Selectivity

?

Filters

?

Receiver system

Triple conversion superheterodyne

IF-frequencies

1st: 380/265 MHz
2nd: 10.8 MHz
3rd: 450 kHz

Image rejection

?

Audio output

3 watts nominal (@ 10% THD)

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

11-16.6V DC

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

183 × 56 × 150 mm (7.20 × 2.20 × 5.91 in)

Weight

1.55 kg (3.4 lbs)

Form factor

Mobile

Manufactured

Between 2009 and 201x

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS/DCS
"Close Call" RF capture technology
Trunktracker IV, tracks Motorola I, II & IIi, EDACS and LTR
Band scope
Multi-color display backlight
NAC-decoding
Individual channel volume offset
RS-232C
GPS-enabled for location-related scanning
Turbo-Search (300 chn/sec)

Accessories

-

RigReference ID

4520

MPN

UNIDEN-BEARCAT-BCD000996XT

Manuals, diagrams and brochures

Uniden BCD996T Programming Control Codes PDF - Unknown size, submitted by RigReference



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat BCD996XT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Uniden-Bearcat BCD996XT in Good condition is around:

• USD 548

Price History Chart

These estimates are based on the following prices:
