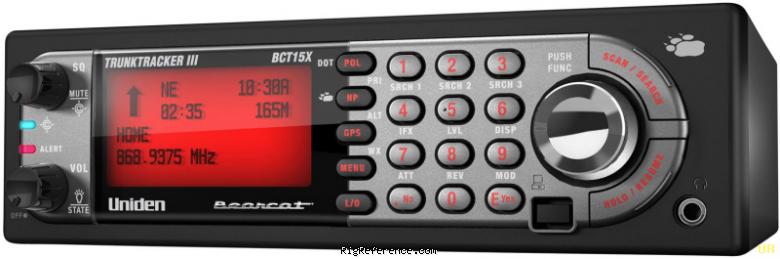

Uniden-Bearcat BCT15X

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

9000 channels in 1 bank(s)

Receiver

RX-range

25-512 / 758-824 / 849-869 / 894-956 / 1240-1300 MHz (less cellular in the US)

Modulations

AM   FM   W-FM

Sensitivity

25-28 MHz AM: 0.4 µV
28-54 MHz FM: 0.3 µV
54-72 MHz WFM: 0.6 µV
72-76 MHz FM: 0.2 µV
76-108 MHz WFM: 0.5 µV
108-137 MHz AM: 0.3 µV
137-174 MHz FM: 0.3 µV
174-216 MHz WFM: 0.5 µV
216-225 MHz FM: 0.3 µV
225-380 MHz AM: 0.3 µV
380-512 MHz FM: 0.3 µV
758-960 MHz FM: 0.3 µV
1240-1300 MHz FM: 0.4 µV

Selectivity

?

Filters

?

Receiver system

Triple conversion superheterodyne

IF-frequencies

1st: 380/265 MHz
2nd: 10.7 MHz
3rd: 450 kHz

Image rejection

?

Audio output

?

Connections

Antenna

BNC

Impedance

50 Ω

Other

-

Electrical

Power requirements

11-16.6V DC

Current drain RX

500 mA max

TX

-

Physical

Dimensions (w×h×d)

184 × 56 × 155 mm (7.24 × 2.20 × 6.10 in)

Weight

1.55 kg (3.4 lbs)

Form factor

Mobile

Manufactured

Between 2009 and 201x

Other features

Usage

Amateur / Ham radio operators

Features + options

Beartracker warning system
"Close call" RF capture technology
RS-232C
Tracks Motorola type I, II. EDACS, SCAT and LTR systems.
CTCSS/DCS
Repeater reverse
S.A.M.E Weather alert
FIPS code
GPS-enabled for location-related scanning
Band scope
Individual channel volume offset

Accessories

-

RigReference ID

4521

MPN

UNIDEN-BEARCAT-BCT000015X

Manuals, diagrams and brochures

Uniden BCT15 Programming Control Codes PDF - Unknown size, submitted by RigReference



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat BCT15X. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Uniden-Bearcat BCT15X in Good condition is around:

• EUR 145
• USD 139 ~ USD 203

Price History Chart

These estimates are based on the following prices:
