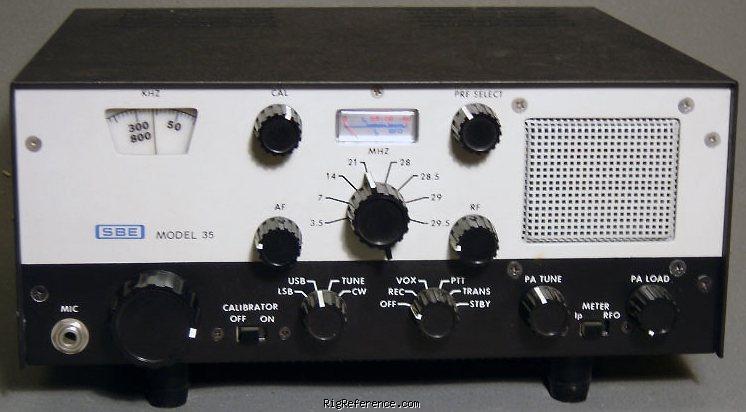

Only very few SB-35s were made, a number of 35 is mentioned. Like the similar SB-34, the SB-35 is a hybrid rig using both tubes and semiconductors.

Rumor had it that the SB-35 was made in Japan, but all of the components are U.S made.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?

Receiver

RX-range
3.5-4 / 7-7.5 / 14-14.5 / 21-21.5 / 28-30 MHz
Modulations
CW   USB   LSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
3.5-4 / 7-7.5 / 14-14.5 / 21-21.5 / 28-30 MHz
Modulations
CW   USB   LSB
RF-Output
260W PEP

Connections

Antenna
-
Impedance
?
Other
-

Electrical

Power requirements
Mains or 12V DC
Current drain RX
?
TX
?

Physical

Manufactured
Between 196x and 1970
Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
SBE-SB-000035
