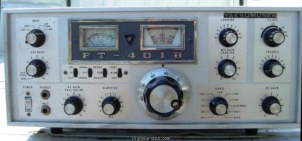

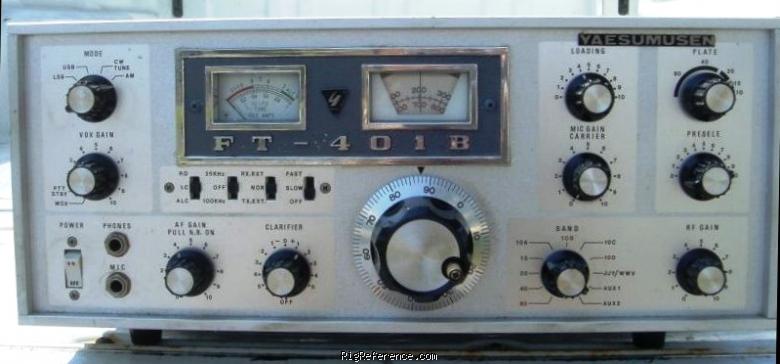

The Yaesu FT-401B is a 10-80 m + 30 m transceiver supporting SSB and CW modulations. Maximum RF output is SSB: 560 W (PEP input), CW: 430 W (input). The radio requires Mains power. Dimensions are 160 × 400 × 350 mm.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-80 m + 30 m
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-80 m + 30 m
- Modulations
- AM CW SSB
- RF-output
- SSB: 560 W (PEP input), CW: 430 W (input)
Connections
- Antenna
- -
- Impedance
- 50/100 Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 400 × 160 × 350 mm (15.75 × 6.30 × 13.78 in)
- Weight
- 18.00 kg (39.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 197x and 1975 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4587
- MPN
- YAESU-FT-000401B
Manuals, diagrams and brochures
- Yaesu FTdx-401 Instruction manual PDF - Unknown size, submitted by RigReference
- Yaesu FT-401 AM addendum PDF - Unknown size, submitted by RigReference
- Yaesu-FT-401 / FTdx-505 Circuit diagram (01) JPG - Unknown size, submitted by RigReference
- Yaesu-FT-401 / FTdx-505 Circuit diagram (02) JPG - Unknown size, submitted by RigReference
- Yaesu-FT-401 / FTdx-505 Circuit diagram (03) JPG - Unknown size, submitted by RigReference
- Yaesu-FT-401 / FTdx-505 Circuit diagram (04) JPG - Unknown size, submitted by RigReference
- Yaesu-FT-401 / FTdx-505 Circuit diagram (05) JPG - Unknown size, submitted by RigReference
