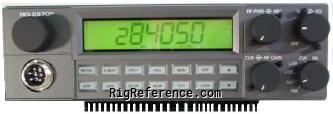

Ranger RCI-2970DX

General characteristics

HAM bands

12m (WARC)  11m (CB)  10m

Frequency stability

0.001%

Tuning steps

0.1 / 1 / 10 / 100 / 1000 kHz

Memories

None

Receiver

RX-range

24-32 MHz

Modulations

AM   FM   CW   SSB

Sensitivity

AM / CW: 0.5 µV for 10 dB SINAD
FM: 0.25 µV for 12 dB SINAD
SSB: 0.15 µV for 10 dB SINAD

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

65 dB

Audio output

2.5 Watts @ 10% THD into 8 Ohm

Transmitter

TX-range

24-32 MHz

Modulations

AM   FM   CW   SSB

RF-output

AM/FM/CW: 50 W, SSB: 150 W PEP

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC

Current drain RX

?

TX

18 A max

Physical

Dimensions (w×h×d)

178 × 98 × 23 mm (7.01 × 3.86 × 0.91 in)

Weight

3.40 kg (7.5 lbs)

Form factor

Mobile

Manufactured

Between 200x and 200x

Other features

Usage

Citizen Band (27Mc)

Features + options

-

Accessories

-

RigReference ID

4910

MPN

RANGER-RCI-002970DX

Manuals, diagrams and brochures

Ranger RCI-2950DX / 2970DX Service Manual PDF - 2.80 MB, submitted by RigReference



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ranger RCI-2970DX. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Ranger RCI-2970DX is around:

• USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
