Palstar RC30A

Mobile VHF Scanner / receiver

Specs Manuals (0) Reviews (0) Prices (1) Compare

Find Palstar RC30A rigs and spare parts on eBay

Find the Palstar RC30A on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

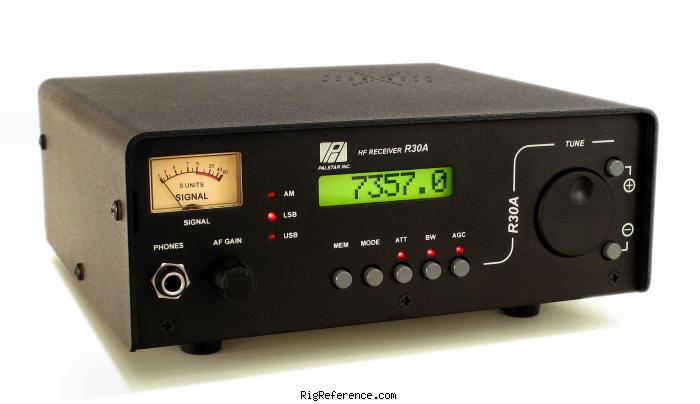

The Palstar R30A HF shortwave receiver is a compact, high performance radio capable of receiving AM, CW and SSB signals in the 100 kHz to 30 MHz spectrum. Unlike most general coverage SW receivers, the R30 is not desensitized on the LF and MW bands, making it ideal for Standard Broadcast Band DXing.

All of this is squeezed into a footprint that fits inside a sheet of paper. The R30A receiver is also equipped with a 10 AA cell internal battery pack that automatically connects to the radio when the external adapter plug is disconnected, allowing portable operation.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: 20 / 100 / 500 Hz / 100 kHz
Memories: 100 channels in 1 bank(s)

Receiver

RX-range: 100 kHz - 29.9999 MHz
Modulations: AM CW USB LSB
Sensitivity: 100 kHz to 2 MHz
AM 2 µV
SSB .5 µV

2 MHz to 30 MHz
AM 1 µV
SSB .5 µV max

10db(S+N/N)
Selectivity: 45 MHz 8 kHz BW
455 Khz (AM) 6 kHz
SSB 2.4 kHz
Filters: 5.8 kHz AM and 2.5 kHz SSB
Receiver system: Double conversion superheterodyne
IF-frequencies: 1st: 45 MHz
2nd: 455 kHz
Image rejection: ?
Audio output: 2 watts into 8 ohm

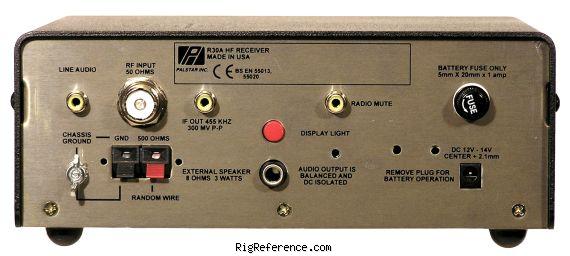

Connections

Antenna: SO-239 + Clamps / screws
Impedance: 50/500Ω
Other: -

Electrical

Power requirements: 12V DC / 10 AA cells
Current drain RX: 350-800 mA
TX: -

Physical

Dimensions (w×h×d): 232 × 100 × 225 mm (9.13 × 3.94 × 8.86 in)
Weight: 1.80 kg (4.0 lbs)
Form factor: Mobile
Manufactured: Between 20xx and 20xx

Other features

Usage: Amateur / Ham radio operators
Features + options: 6-digit LCD display
Analog S-Meter
455kHz IF output
Accessories: -
RigReference ID: 5103
MPN: PALSTAR-RC000030A

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Palstar RC30A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Palstar RC30A is around:

USD 158.00

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2013	USD 499.95	Used / Good	universal-radio
