Clansman PRC-349

Handheld VHF Transceiver

Specs Manuals (0) Reviews (1) Prices (1) Compare

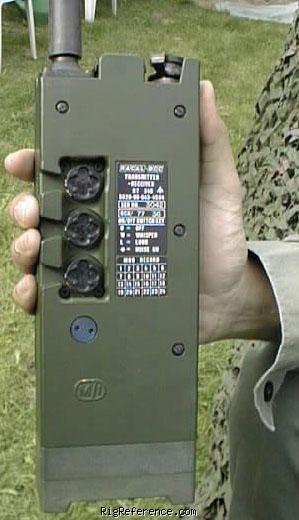

Front view - image courtesy of www.armyradio.com - Submitted by elmer

The Clansman PRC-349 is a handheld VHF transceiver. It covers 37-46.95 MHz for both receive and transmit with 25 kHz tuning steps. The PRC-349 has an RF output of 0.25 / 0.5 / 1 W and features 1 memory bank with 400 channels. Power requirements are 12V DC (10 × AA cells). Dimensions are 244 × 90 × 30 mm and the weight is 1.5 kg.

General characteristics

HAM bands: None
Frequency stability: ?
Tuning steps: 25 kHz
Memories: 400 channels in 1 bank(s)

Receiver

RX-range: 37-46.95 MHz
Modulations: N-FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 37-46.95 MHz
Modulations: N-FM
RF-output: 0.25 / 0.5 / 1 W

Connections

Antenna: Proprietary (military)
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12V DC (10 × AA cells)
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 90 × 244 × 30 mm (3.54 × 9.61 × 1.18 in)
Weight: 1.50 kg (3.3 lbs)
Form factor: Handheld
Manufactured: Between 1978 and 2010 in UK

Other features

Usage: Military communication
Features + options: -
Accessories: -
RigReference ID: 5111
MPN: CLANSMAN-PRC-000349

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents
