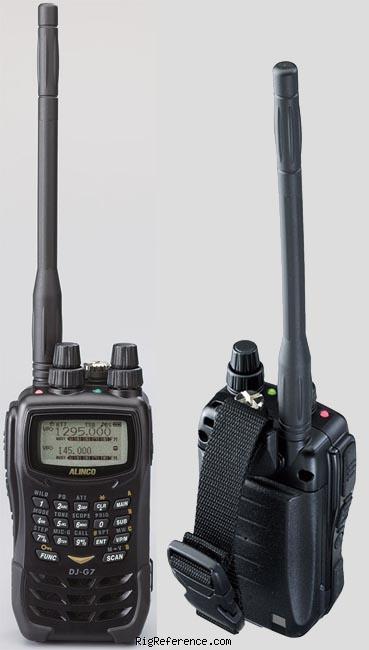

Alinco DJ-G7E

Handheld VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Alinco's first 23 cm rig. European version of the Alinco DJ-G7T.

Frequency range

RX-range
0.531-1300 MHz
TX-range
144-146 / 430-440 / 1260-1300 MHz
HAM bands
2m  70cm  23cm
Stability
± 2.5 ppm
Tuning steps
?
Filters
?

Receiver

Modulations
AM   FM   N-FM   W-FM
Sensitivity
?
Selectivity
AM/FM: 12 kHz (-6 dB), 35 kHz (-60 dB)
W-FM: 130 kHz (-6 dB), 300 kHz (-60 dB)
Receiver system
Double conversion superheterodyne (AM/FM) Single conversion superheterodyne (W-FM)
IF-frequencies
10.7 MHz (W-FM)
1st: 50.65 and 50.75 MHz (AM/FM)
2nd: 450 kHz (AM/FM)
Image rejection
60 dB
Audio output
?

Transmitter

Modulations
FM   N-FM
RF-Output
0.2 - 5 W depending in settings and voltage

Connections

Antenna
SMA
Impedance
50 Ω

Electrical

Power requirements
7.4V DC (Li-Ion pack) or 6V DC (4*R6/AA) or 4.5-16V DC external
Current drain RX
200 mA
TX
2 A max

Physical

Dimensions (w×h×d)
61 × 106 × 38 mm (2.40 × 4.17 × 1.50 in)
Weight
296 gr (10.4 oz)
Form factor
Handheld
Manufactured
Between 2009 and 20xx in Japan
MPN
ALINCO-DJ-G000007E

Other features

Memories
1000 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Twin RX (full duplex operation support)
CTCSS / DCS
VOX
Ferrite bar for MW reception
Accessories
?

Manuals, diagrams and brochures

Alinco DJ-G7 Instruction manual submitted by RigReference
Alinco DJ-G7 Service manual submitted by RigReference

Upload relevant documents

Show other documents.
Find the Alinco DJ-G7E user manuals on eBay

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DJ-G7E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Alinco DJ-G7E is around:

  • EUR 270.00 ~ EUR 178.00
Year Historic price Condition Submitted by
2013 EUR 329.00 Used / Good thiecom.de
2010 EUR 359.00 New / Good thiecom.de
