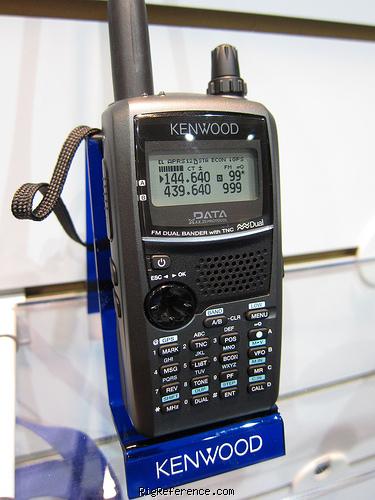

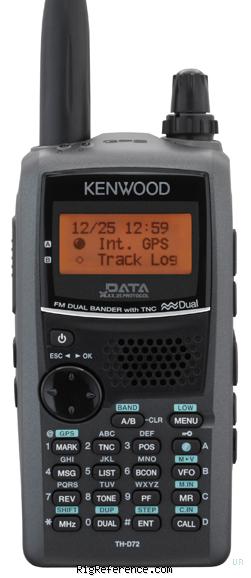

The Kenwood TH-D72A Data Communicator is equipped with a built-in TNC (1200/9600) and provides APRS® (Automatic Packet/Position Reporting System) and there is an integrated GPS! And the TH-D72A can employed as part of Kenwood’s Skycommand System II+ when used with the TS-2000 series. The TH-D72A also offers EchoLink® memory compatibility and a mini-USB connector for enhanced computer connectivity. Features include: 1000 alpha memory channels, 9 scan modes (VFO, Program, MHz, Memory, Memory Group, Call, Tone, CTCSS, DCS), 42 CTCSS frequencies, 104 DCS (Digital Code Squelch) codes, Cross-tone, Waypoint export, DX cluster tune, Clock (date/time), Band mask, Call channel, Monitor, Auto power-off, MHz mode, Selectable frequency step, Shift, VOX, Auto repeater offset, Automatic simplex checker, and DTMF memory (10 channels, 16 digits). New advanced innovations include:1200/9600 bps packet TNC,SkyCommand APRS Firmware, Stand-alone Digipeater, Built-in High performance GPS (with KML file support from the free MCP-4A software), GPS logging – memory for up to 5000 points of track data, EchoLink Ready, MIL-STD810 and IP54 weatherproofing, 1200/9600 bps packet communications, Kiss mode, Stand-alone Digipeater and the TH-D72A can even function as an iGate when properly connected! This transceiver is sure to make ham radio operations easier and more fun for all.

General characteristics

HAM bands
2m  70cm
Frequency stability
?
Tuning steps
?
Memories
1000 channels in 1 bank(s)

Receiver

RX-range
144-148 / 430-450 MHz (US version)
Modulations
AM   FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
144-148 / 430-450 MHz (US version)
Modulations
FM
RF-output
?

Connections

Antenna
SMA
Impedance
50 Ω
Other
-

Electrical

Power requirements
?
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Handheld
Manufactured
Between 2010 and 20xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
APRS
GPS
Accessories
-
RigReference ID
5231
MPN
KENWOOD-TH-D000072

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
Very good radio 1 year ago by kd4qhg
Love this radio 8 years ago by KD8LDX

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TH-D72. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TH-D72 is around:

  • EUR 238.00
  • USD 195.00 ~ USD 238.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2015 USD 265.00 New / Mint kd4qhg
2011 EUR 480.00 New / Mint s55db
2010 USD 490.00 New / Mint KD8LDX
