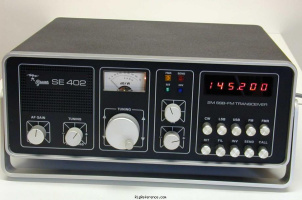

The Braun SE-402 is similar to the Braun SE-401 except for appearances.

General characteristics

HAM bands
2m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
144-146 MHz
Modulations
FM   CW   SSB
Sensitivity
FM: 0.15 µV (10 dB)
SSB: 0.06 µV (10 dB)
Selectivity
?
Filters
?
Receiver system
Single conversion superheterodyne
IF-frequencies
10.7 MHz
Image rejection
?
Audio output
?

Transmitter

TX-range
144-146 MHz
Modulations
FM   CW   SSB
RF-output
10 W

Connections

Antenna
SO-239
Impedance
50 Ω
Other
-

Electrical

Power requirements
13.8V DC or mains
Current drain RX
Max 1.4 A
TX
Max 2.9 A

Physical

Dimensions (w×h×d)
307 × 117 × 260 mm (12.09 × 4.61 × 10.24 in)
Weight
7.30 kg (16.1 lbs)
Form factor
Base Station
Manufactured
Between 1977 and 197x in West Germany

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
5151
MPN
BRAUN-SE-000402

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Braun SE-402. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Braun SE-402 is around:

  • USD 224 ~ USD 415

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
