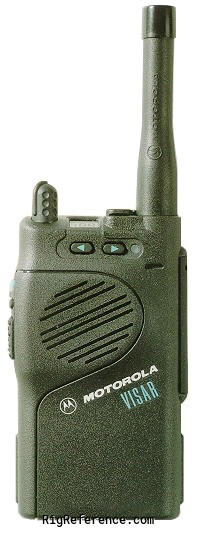

Motorola Visar

Frequency range

RX-range

136-178 or 403-470 or 450-520 or 800-821 or 851-866 MHz depending on version

TX-range

136-178 or 403-470 or 450-520 or 800-821 or 851-866 MHz depending on version

HAM bands

?

Stability

?

Tuning steps

?

Filters

?

Receiver

Modulations

FM

Sensitivity

?

Selectivity

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

Modulations

FM

RF-Output

VHF: 1-5 W, UHF: 1-4 W, 800: 3 W

Connections

Antenna

NMO

Impedance

50Ω

Electrical

Power requirements

?

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

56 × 103 × 28 mm (2.20 × 4.06 × 1.10 in)

Weight

312 gr (11.0 oz) incl medium battery

Form factor

Handheld

Manufactured

Between 199x and 200x

MPN

MOTOROLA-VISAR

Other features

Memories

16 channels in 1 bank(s)

Usage

Commercial / Land mobile communication

Features + options

?
