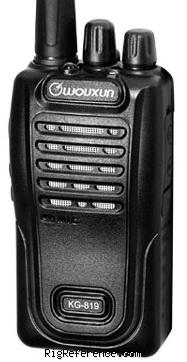

Wouxun KG-819

Handheld VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Wouxun KG-819 is a handheld VHF/UHF transceiver. The frequency range for both receive and transmit is VHF: 136-174 or 245-250 or 216-280 or 225-226 MHz, UHF: 350-390 or 400-470 or 400-480 MHz (range depending on version and region). The KG-819 has a frequency stability of ± 2.5 p.p.m. The RF output is VHF: 1W/5W, UHF: 1W/4W. Audio output is 500mW @ <5% THD. It features 1 memory bank with 16 channels. The KG-819 has VOX, CTCSS / DCS, and DTMF encoder/decoder. Dimensions are 100 × 57 × 33 mm. The transceiver weighs 206 gr with antenna and battery.

General characteristics

HAM bands: 6m
Frequency stability: ± 2.5 p.p.m.
Tuning steps: ?
Memories: 16 channels in 1 bank(s)

Receiver

RX-range: VHF: 136-174 or 245-250 or 216-280 or 225-226 MHz
UHF: 350-390 or 400-470 or 400-480 MHz
(range depending on version and region)
Modulations: FM N-FM
Sensitivity: 0.2 µV (12dB SINAD)
Selectivity: 12.5 / 25 kHz
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: 60dB
Audio output: 500mW @ <5% THD

Transmitter

TX-range: VHF: 136-174 or 245-250 or 216-280 or 225-226 MHz
UHF: 350-390 or 400-470 or 400-480 MHz
(range depending on version and region)
Modulations: FM N-FM
RF-output: VHF: 1W/5W, UHF: 1W/4W

Connections

Antenna: SMA
Impedance: 50Ω
Other: -

Electrical

Power requirements: 7.4 V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 57 × 100 × 33 mm (2.24 × 3.94 × 1.30 in) without antenna
Weight: 206 gr (7.3 oz) with antenna and battery
Form factor: Handheld
Manufactured: Between 200x and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: 1750 Hz
VOX
CTCSS / DCS
DTMF encoder / decoder
Accessories: -
RigReference ID: 5450
MPN: WOUXUN-KG-000819

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Wouxun KG-819. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Wouxun KG-819 is around:

USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.
