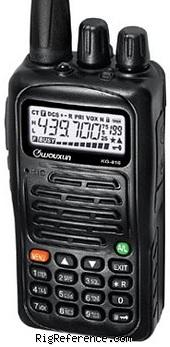

Wouxun KG-816

Handheld VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Wouxun KG-816 is a handheld VHF/UHF transceiver. The frequency range for receive and transmit are VHF: 136-174 or 245-250 or 216-280 or 225-226 MHz, UHF: 350-390 or 400-470 or 400-480 or 420-520 or 403-470 MHz (range depending on version and region). The KG-816 has a frequency stability of ± 2.5 p.p.m. and an image rejection of 60dB. RF output is VHF: 1W/5W, UHF: 1W/4W with an audio output of 500mW @ <5% THD. It features 1 memory bank with 199 channels. The KG-816 has a weight of 214 gr (with antenna and battery) and dimensions are 100 × 57 × 33 mm (without antenna). Features include 1750 Hz, VOX, CTCSS / DCS, DTMF encoder / decoder, flashlight, and ANI (Caller ID).

General characteristics

HAM bands: 6m
Frequency stability: ± 2.5 p.p.m.
Tuning steps: ?
Memories: 199 channels in 1 bank(s)

Receiver

RX-range: VHF: 136-174 or 245-250 or 216-280 or 225-226 MHz
UHF: 350-390 or 400-470 or 400-480 or 420-520 or 403-470 MHz
(range depending on version and region)
Modulations: FM N-FM
Sensitivity: 0.2 µV (12dB SINAD)
Selectivity: 12.5 / 25 kHz
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: 60dB
Audio output: 500mW @ <5% THD

Transmitter

TX-range: VHF: 136-174 or 245-250 or 216-280 or 225-226 MHz
UHF: 350-390 or 400-470 or 400-480 or 420-520 or 403-470 MHz
(range depending on version and region)
Modulations: FM N-FM
RF-output: VHF: 1W/5W, UHF: 1W/4W

Connections

Antenna: SMA
Impedance: 50Ω
Other: -

Electrical

Power requirements: 7.4 V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 57 × 100 × 33 mm (2.24 × 3.94 × 1.30 in) without antenna
Weight: 214 gr (7.6 oz) with antenna and battery
Form factor: Handheld
Manufactured: Between 200x and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: 1750 Hz
VOX
CTCSS / DCS
DTMF encoder / decoder
Flashlight
ANI (Caller ID)
Accessories: -
RigReference ID: 5451
MPN: WOUXUN-KG-000816
