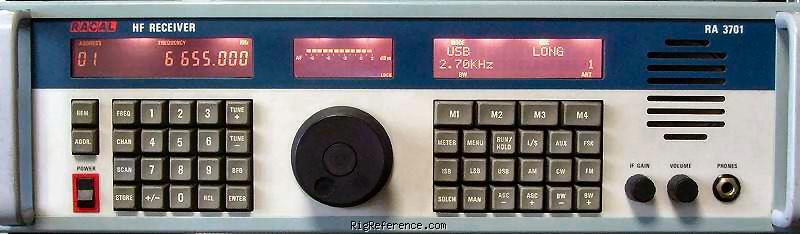

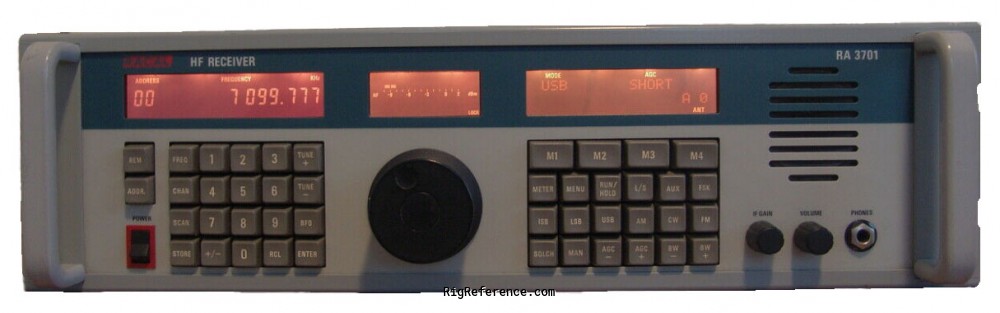

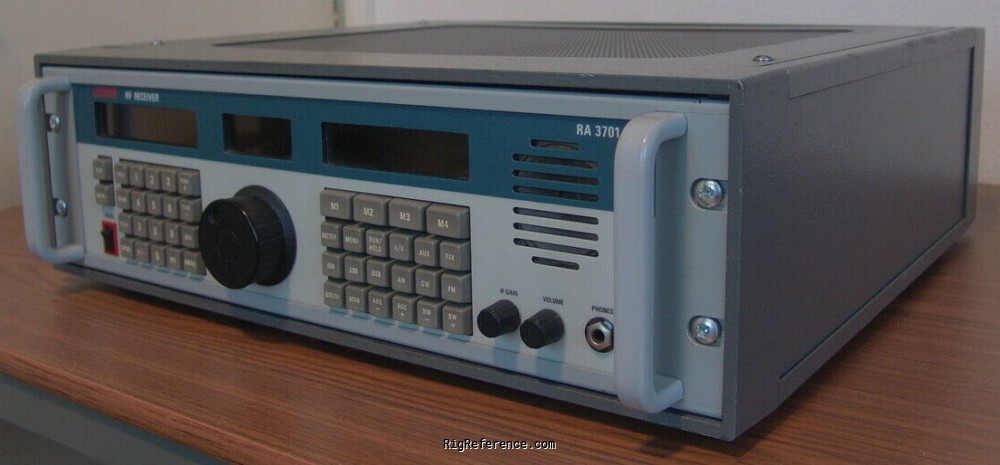

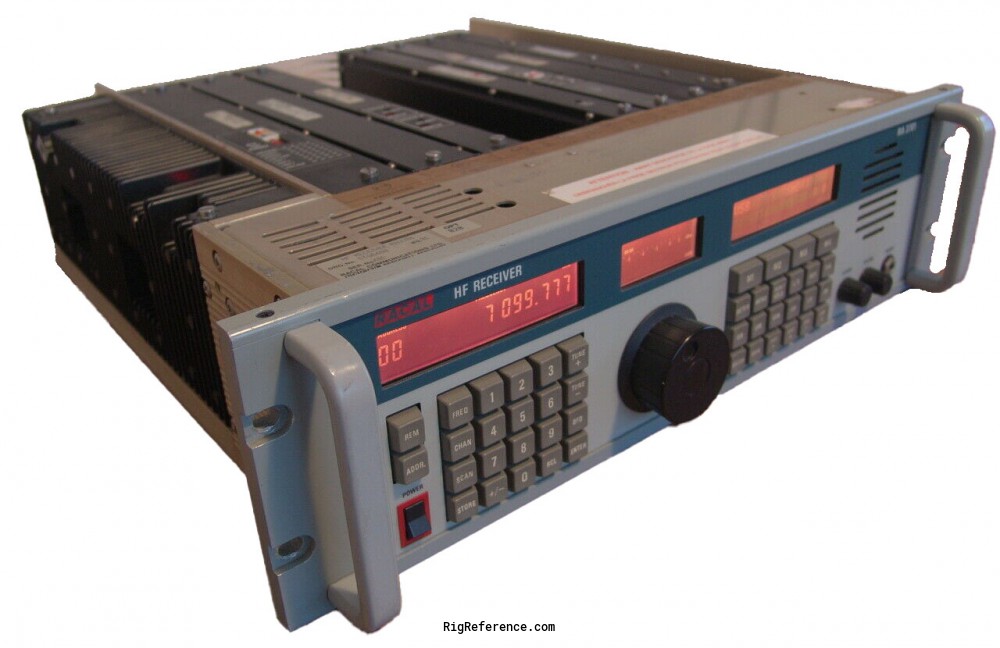

The Racal RA 3701 is a professional grade receiver. It matches the Racal TTA 3771 transmitter.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m  2000m
Frequency stability
?
Tuning steps
?
Memories
100 channels in 1 bank(s)

Receiver

RX-range
15 kHz - 30 MHz
Modulations
AM   FM   CW   USB   LSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
60 W
TX
-

Physical

Dimensions (w×h×d)
483 × 133 × 450 mm (19.02 × 5.24 × 17.72 in)
Weight
?
Form factor
Base Station
Manufactured
Between 19xx and 19xx in Great Britain

Other features

Usage
Commercial / Land mobile communication
Features + options
-
Accessories
-
RigReference ID
5228
MPN
RACAL-RA-003701

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
Receiver van hoge kwaliteit 9 years ago by hjhamer

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Racal RA-3701. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Racal RA-3701 is around:

  • USD 1862.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 1950.00 Used / Good eBay
