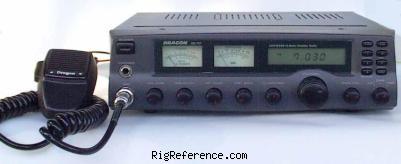

Dragon SS-797

Desktop Shortwave Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Dragon SS-797 is a 7-7.1 MHz transceiver supporting SSB/FM/AM modulations. Maximum RF output is SSB/FM: 50 W, AM: 20 W. Power requirements are 13.8V DC. Dimensions are 85 × 300 × 240 mm. The radio weighs 3.4 kg.

General characteristics

HAM bands: 40m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 7-7.1 MHz
Modulations: AM FM SSB
Sensitivity: AM: 0.5 µV
FM/SSB: 0.25 µV
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 7-7.1 MHz
Modulations: AM FM SSB
RF-output: SSB/FM: 50 W, AM: 20 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 300 × 85 × 240 mm (11.81 × 3.35 × 9.45 in)
Weight: 3.40 kg (7.5 lbs)
Form factor: Base Station
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 5301
MPN: DRAGON-SS-000797

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Dragon SS-797. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Dragon SS-797 is around:

USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
