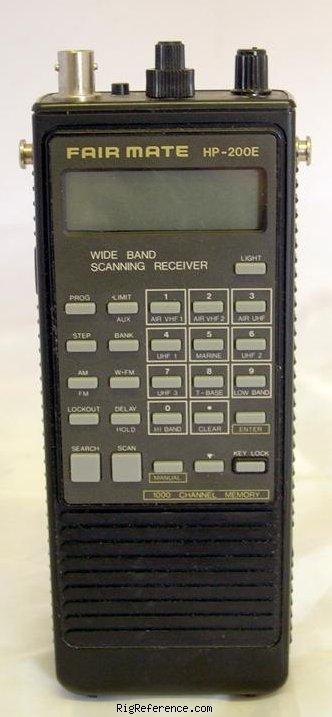

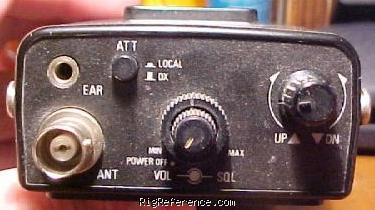

Fair Mate HP-200E

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

user-selectable in any steps of 5 kHz and 12.5 kHz up to 995 kHz kHz

Memories

1000 channels in 10 bank(s) @ 20 channels/second

Receiver

RX-range

0.5-600 / 805-1300 MHz

Modulations

AM   FM   W-FM

Sensitivity

Low Band AM: 10dB S/N 0.7 - 1.0µV
N-FM: 12dB Sinad 0.5µV
W-FM: 20dB S/N 1.0µV
High band : N-FM: 12dB Sinad 0.7 - 1.0µV

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

100 mW

Connections

Antenna

BNC

Impedance

50 Ω

Other

-

Electrical

Power requirements

4.8-6V DC (4R6/AA) or 11-15V DC external

Current drain RX

80-100 mA

TX

-

Physical

Dimensions (w×h×d)

65 × 170 × 35 mm (2.56 × 6.69 × 1.38 in)

Weight

300 gr (10.6 oz) without batteries

Form factor

Handheld

Manufactured

Between 199x and 199x

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

5369

MPN

FAIR-MATE-HP-000200E

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews & stories

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Fair Mate HP-200E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

These estimates are based on the following prices:
