JRC JST-10A

Desktop Shortwave Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

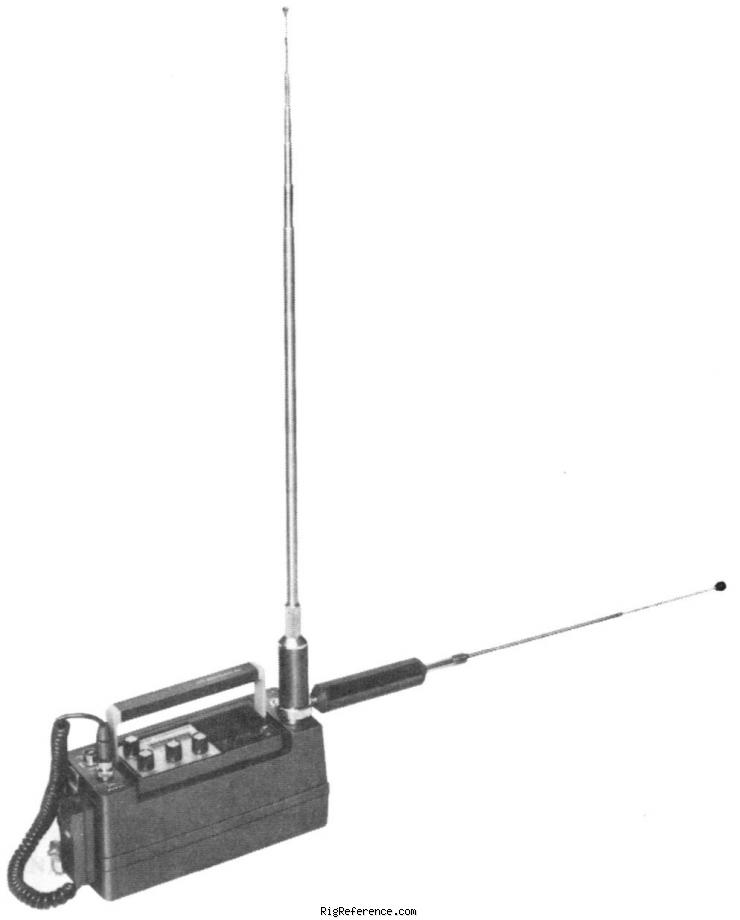

The Japan Radio Company JST-10 is a dual-band, portable, QRP HF transceiver covering 40 and 15 meters in CW and SSB modes. Frequency coverage is 7-7.1 MHz, 21-21.5, 21.15-21.30 and 21.3 to 21.45 MHz. There is an LCD display. Power output may be selected at 10 or 1 watts. Three way power includes: external 12-15 V DC 3A, 11 alkaline D cells (not supplied) or optional NBB-151 NiCd pack.

General characteristics

HAM bands
40m  15m
Frequency stability
?
Tuning steps
?

Receiver

RX-range
7-7.1 / 21-21.45 MHz
Modulations
CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
15 + 40m
Modulations
CW   SSB
RF-Output
1/10 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
12-15 V DC
Current drain RX
?
TX
3 A max

Physical

Manufactured
Between 1986 and 1988 in Japan
Dimensions (w×h×d)
250 × 115 × 90 mm (9.84 × 4.53 × 3.54 in) excluding antenna
Weight
2.70 kg (6.0 lbs) incl. battery and antenna
Form factor
Base Station

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
JRC-JST-000010A
