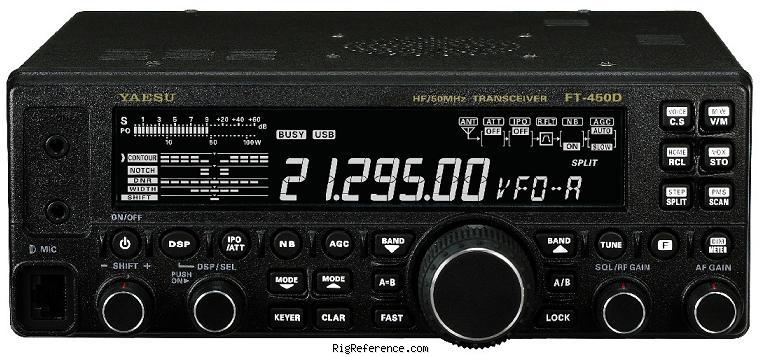

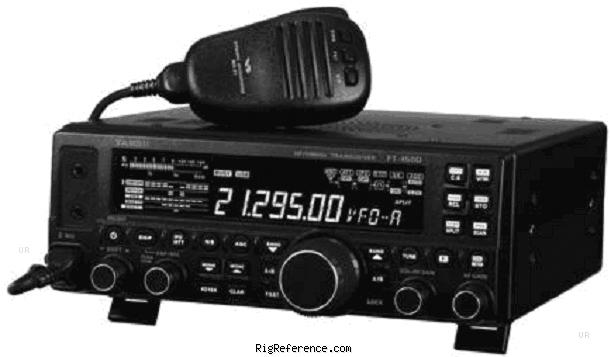

The Yaesu FT-450D expands on the success of the Yaesu FT-450 adding new features. It employs blazing fast 400 MHz IF DSP technology to bring an array of advanced features to the operator. Transmit frequency coverage includes 160 to 6 meters. The receive range is 30 kHz to 54 MHz. Power output is 100 watts on HF and 6 meters. Operating modes include USB, LSB, CW, AM and FM. An antenna tuning system is built in!
Original price in 2010: USD 949,00
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ± 1 p.p.m. / hour (after warmup) with built-in TCXO
- Tuning steps
- 0.01 kHz
- Memories
- 500 channels in 10 bank(s)
Receiver
- RX-range
- 0.03-56 MHz
- Modulations
- AM FM CW USB LSB
- Sensitivity
- AM (10 dB S/N)
1.8-30 MHz: 2 µV
50-56 MHz: 1 µV
FM (12 dB SINAD)
28-30 MHz: 0.5 µV
50-56 MHz: 0.25 µV
SSB/CW (10 dB S/N)
1.8-30 MHz: 0.2 µV
50-56 MHz: 0.16 µV - Selectivity
- AM: 6 kHz (-6 dB), 20 kHz (-60 dB)
FM: 9 kHz (-6 dB), 25 kHz (-60 dB)
SSB/CW: 2.2 kHz (-6 dB), 4.5 kHz (-60 dB) - Filters
- 500 / 300 kHz CW filter (DPS) 10 kHz roofing filter
- Receiver system
- IF-DSP
- IF-frequencies
- ?
- Image rejection
- 70 dB
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 6 m
- Modulations
- AM FM CW USB LSB
- RF-output
- SSB/CW/FM: 100, AM: 25 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/-10%
- Current drain RX
- 1 A (squelched)
- TX
- 22 A max.
Physical
- Dimensions (w×h×d)
- 223 × 84 × 217 mm (8.78 × 3.31 × 8.54 in)
- Weight
- 3.60 kg (7.9 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2010 and 201x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- New for the FT-450D:
- 400 MHz built-in IF DSP
- Built in Antenna Tuning System
- Classically Designed Knobs
- Included Dynamic hand mic
- Key Illumination
- Foot Stand
- 500 & 300 Hz CW Filters - Accessories
- -
- RigReference ID
- 5453
- MPN
- YAESU-FT-000450D
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| Great Radio for the Cost | 4 years ago by bob27gus | |
| Good little radio | 6 years ago by Richard | |
| great radio | 13 years ago by itsmem |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-450D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FT-450D is around:
- USD 620.00 ~ USD 270.00
- CAD 517.00
These estimates are based on the following prices:
