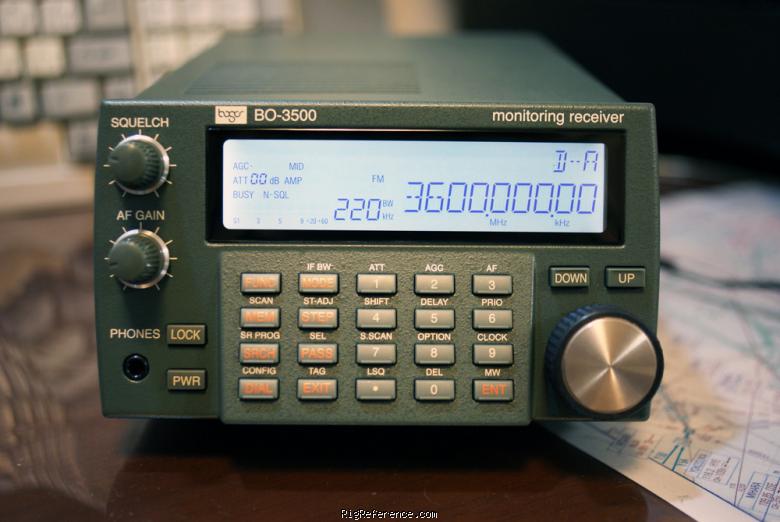

Boger BO-3500 Desktop HF/VHF/UHF Scanner / receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



The Boger BO-3500 has a compact shape, inspired by military technology. Price when new in 2011: EUR 3959,--

Frequency range

RX-range
10 kHz - 3.6 GHz
TX-range
-
HAM bands
-
Stability
10MHz reference intern: < ± 1,5 p.p.m., -10° - +55°C
Tuning steps
-
Filters
2.4 / 4 / 6 / 15 / 30 / 110 / 220 kHz 500 kHz optional

Receiver

Modulations
AM   FM   W-FM   W-FM Stereo   CW   USB   LSB
Sensitivity
2-30MHz
SSB 0,4µV, 10dB S/N, BW 2,4kHz
AM 1,3µV, 10dB S/N, BW 6,0kHz

>30MHz
SSB 0,3µV, 10dB S/N, BW 2,4kHz
FM 0,4µV 12dB SINAD, BW 15kHz
Selectivity
-
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.7 MHz
2nd: 455 kHz
Image rejection
-
Audio output
1,0 watt at 8 Ohm – 1% THD

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
BNC
Impedance
50Ω

Electrical

Power requirements
12 V DC
Current drain RX
25 W
TX
-

Physical

Dimensions (w×h×d)
-
Weight
-
Form factor
Base Station
Manufactured
Between 2011 and 20xx in Japan
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
Video modulator
RS-232C and USB
External 10 MHz reference input
