ICOM IC-7100

Mobile HF/VHF/UHF Transceiver | Touch screen | 100W

Add a review Add to my shack


Login or Register to upload images

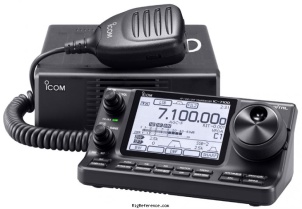

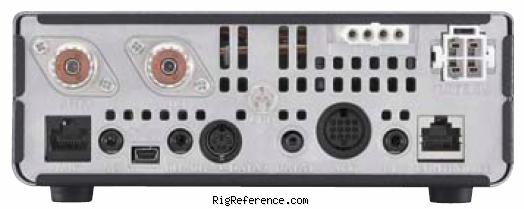

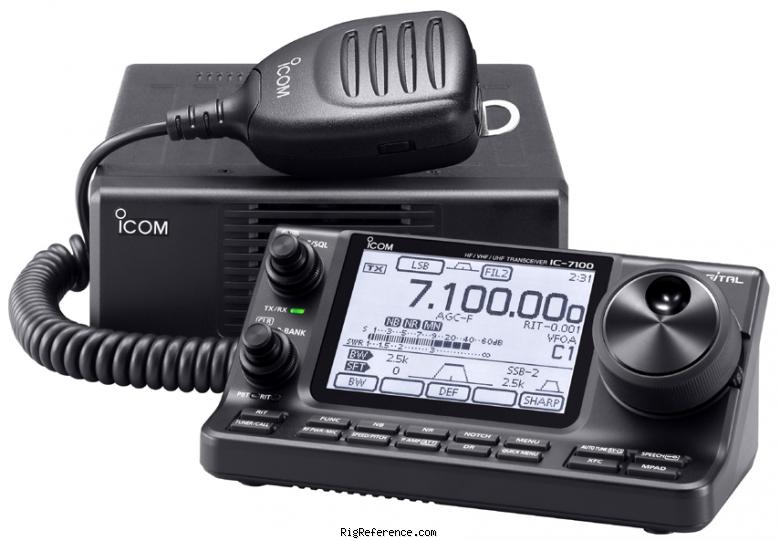

The Icom IC-7100 is an affordable all-mode HF/VHF/UHF mobile transceiver with a very high Cool Factor. DSP at the IF level is the cornerstone of this impressive new multi-bander. RF power is HF 100 watts, 50 MHz 100 watts, 144 MHz 50 watts and 430 MHz 35 watts. Extended receive provides coverage from 30 kHz to 199.999 MHz and 400-470 MHz. Enjoy ± 0.5ppm frequency stability and 505 memory channels. This radio requires 13.8 V DC at 22 amps. The rear panel has an antenna input for HF/6M and one for VHF/UHF bands.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  2m  70cm  10m
Frequency stability
within ± 0.5 p.p.m.
Tuning steps
?
Memories
505 channels in 1 bank(s)

Receiver

RX-range
0.03-200 / 400-470 MHz
Modulations
AM   FM   W-FM   CW   USB   LSB   RTTY   DV
Sensitivity
AM (10 dB S/N)
0.5-1.8 MHz: 13 µV
1.8-29.9 MHz: 2 µV
50-54 MHz: 1 µV
144/440 MHz: 1 µV
FM (12 dB SINAD)
28-29.9 MHz: 0.5 µV
50-54 MHz: 0.25 µV
144/440 MHz: 0.18 µV
WFM (12 dB SINAD)
76-108 MHz: 10 µV
SSB/CW/RTTY (10 dB S/N)
1.8-29.9 MHz: 0.16 µV
50-54 MHz: 0.13 µV
144/440 MHz: 0.11 µV
DV (D-Star)
28-29.7 MHz: 1 µV
50-54 MHz: 0.63 µV
144/440 MHz: 0.35 µV
Selectivity
AM (BW=6 kHz)
6 kHz (-6 dB), 15 kHz (-60 dB)
FM (BW=15 kHz)
12 kHz (-6 dB), 20 kHz (-60 dB)
SSB (BW=2.4 kHz, sharp)
2.4 kHz (-6 dB), 3.6 kHz (-60 dB)
CW (BW=500 Hz, sharp)
500 Hz (-6 dB), 900 Hz (-60 dB)
RTTY (BW=350 Hz)
360 Hz (-6 dB), 650 Hz (-60 dB)
Filters
?
Receiver system
Double (W-FM) / triple (AM/FM/SSB/CW/RTTY) conversion
IF-frequencies
1st: 134.732 / 124.487 MHz
2nd: 10.7 / 455 kHz
3rd: 36 kHz
Image rejection
HF: 70 dB 6 m / 2 m / 70 cm: 65 dB
Audio output
2 W (10% distortion, 8 ohm)

Transmitter

TX-range
10-160 m + WARC / 6 m / 2 m / 70 cm
(+70 MHz in Europe)
Modulations
AM   FM   CW   USB   LSB   RTTY   DV
RF-output
FM/SSB/CW/RTTY: 2-100 / 2-100 / 2-50 / 1-35 W / (2-50 W on 70 MHz) AM: 1-40 W (HF)

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC ±15%
Current drain RX
1.2-1.5 A
TX
22 A max

Physical

Dimensions (w×h×d)
167 × 58 × 225 mm (6.57 × 2.28 × 8.86 in) controller: 165 × 64 × 78 mm
Weight
2.30 kg (5.1 lbs) controller: 500 gr
Form factor
Mobile
Manufactured
Between 2012 and 20xx

Other features

Usage
Amateur / Ham radio operators
Features + options

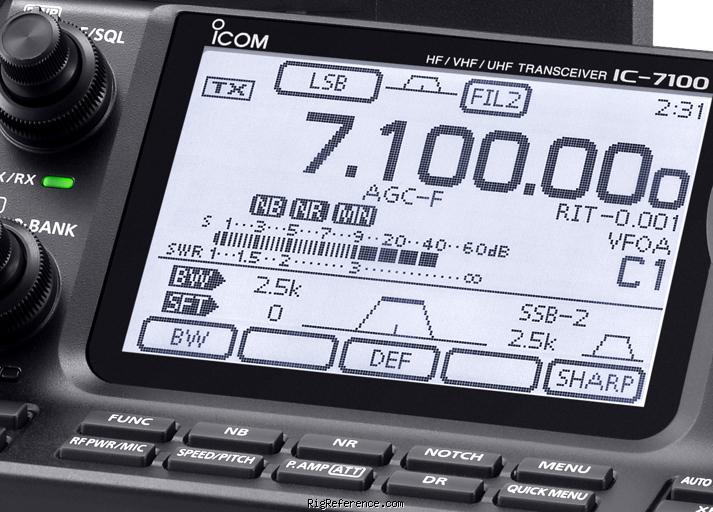

Touch Screen Interface
Slant Top Controller
Speaker on Controller
Extended Receive
SWR Graphic Display
D-Star DV Mode
SD Card Slot
IF DSP
Variable Power Output
Multi-Function Meter
Accessories
-
RigReference ID
5566
MPN
ICOM-IC-007100

Manuals, diagrams and brochures

ICOM IC-7100 Brochure PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
Couldn't be happier with it 2 years ago by contact
Do it all portable base radio! 6 years ago by ki5so
IC7100 6 years ago by Bill.morton

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-7100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-7100 is around:

  • USD 1204.00
  • AUD 1442.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2015 AUD 1600.00 New / Mint contact
2013 USD 1675.00 New / Mint Bill.morton
