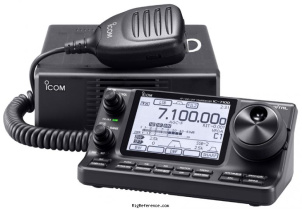

ICOM IC-7100

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  2m  70cm  10m

Frequency stability

within ± 0.5 p.p.m.

Tuning steps

?

Memories

505 channels in 1 bank(s)

Receiver

RX-range

0.03-200 / 400-470 MHz

Modulations

AM   FM   W-FM   CW   USB   LSB   RTTY   DV

Sensitivity

AM (10 dB S/N)
0.5-1.8 MHz: 13 µV
1.8-29.9 MHz: 2 µV
50-54 MHz: 1 µV
144/440 MHz: 1 µV
FM (12 dB SINAD)
28-29.9 MHz: 0.5 µV
50-54 MHz: 0.25 µV
144/440 MHz: 0.18 µV
WFM (12 dB SINAD)
76-108 MHz: 10 µV
SSB/CW/RTTY (10 dB S/N)
1.8-29.9 MHz: 0.16 µV
50-54 MHz: 0.13 µV
144/440 MHz: 0.11 µV
DV (D-Star)
28-29.7 MHz: 1 µV
50-54 MHz: 0.63 µV
144/440 MHz: 0.35 µV

Selectivity

AM (BW=6 kHz)
6 kHz (-6 dB), 15 kHz (-60 dB)
FM (BW=15 kHz)
12 kHz (-6 dB), 20 kHz (-60 dB)
SSB (BW=2.4 kHz, sharp)
2.4 kHz (-6 dB), 3.6 kHz (-60 dB)
CW (BW=500 Hz, sharp)
500 Hz (-6 dB), 900 Hz (-60 dB)
RTTY (BW=350 Hz)
360 Hz (-6 dB), 650 Hz (-60 dB)

Filters

?

Receiver system

Double (W-FM) / triple (AM/FM/SSB/CW/RTTY) conversion

IF-frequencies

1st: 134.732 / 124.487 MHz
2nd: 10.7 / 455 kHz
3rd: 36 kHz

Image rejection

HF: 70 dB 6 m / 2 m / 70 cm: 65 dB

Audio output

2 W (10% distortion, 8 ohm)

Transmitter

TX-range

10-160 m + WARC / 6 m / 2 m / 70 cm
(+70 MHz in Europe)

Modulations

AM   FM   CW   USB   LSB   RTTY   DV

RF-output

FM/SSB/CW/RTTY: 2-100 / 2-100 / 2-50 / 1-35 W / (2-50 W on 70 MHz) AM: 1-40 W (HF)

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC ±15%

Current drain RX

1.2-1.5 A

TX

22 A max

Physical

Dimensions (w×h×d)

167 × 58 × 225 mm (6.57 × 2.28 × 8.86 in) controller: 165 × 64 × 78 mm

Weight

2.30 kg (5.1 lbs) controller: 500 gr

Form factor

Mobile

Manufactured

Between 2012 and 20xx

Other features

Usage

Amateur / Ham radio operators

Features + options

Touch Screen Interface
Slant Top Controller
Speaker on Controller
Extended Receive
SWR Graphic Display
D-Star DV Mode
SD Card Slot
IF DSP
Variable Power Output
Multi-Function Meter

Accessories

-

RigReference ID

5566

MPN

ICOM-IC-007100
